Thomas 2665PHI44

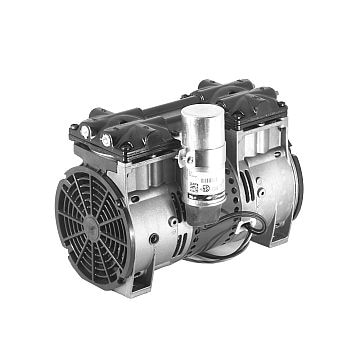

Thomas 2685PHI44

Description: Thomas Oil-less WOB-L Piston Compressor

Availability: Please contact us at +1 (847) 540-0054 or sales@cfpco.com for estimated lead time

Details

No longer available.  Replaced by 2685PHI44.
Brand:
Thomas

Flow Rate (CFM):
3.23

Flow Rate (LPM):
91

Max Pressure (PSIG):
100

Voltage (50Hz):
220-240

Frequency (Hz):
50

Phase:
1-phase

Item Length (In):
9.31

Item Width (In):
5.18

Item Height (In):
7.09

Net Weight (Lbs):
16


SK268540

Description: Thomas Service Kit. Kit includes Cylinder sleeves, cylinder orings, 624786 piston cups, head screws, head oring, retainer screws, valves, valve keepers, valve restraints, valve screws. Kit is compatible with standard Thomas 2665P, 2685PE models. (This item currently has a tariff surcharge which will be added to your order as a separate line item. Tariff surcharges are subject to change.)

Availability: Please contact us at +1 (847) 540-0054 or sales@cfpco.com for estimated lead time

638281

Description: Thomas Fan - Gray CW 9 Blade (17mm shaft). (Tariff surcharges in effect at time of shipment will be added to your order offline.)

Availability: In Stock

638282

Description: Thomas Fan - Black CCW 9 Blade (17 mm shaft). Six piece minimum. (Tariff surcharges in effect at time of shipment will be added to your order offline.)

Availability: Please contact us at +1 (847) 540-0054 or sales@cfpco.com for estimated lead time

617090

Description: Thomas Capacitor Bracket. Minimum Order is 10 Pieces

Availability: Please contact us at +1 (847) 540-0054 or sales@cfpco.com for estimated lead time

Downloads

These supporting documents are available for download:
