DTE 10 (230v)
Images may be representative.
Details

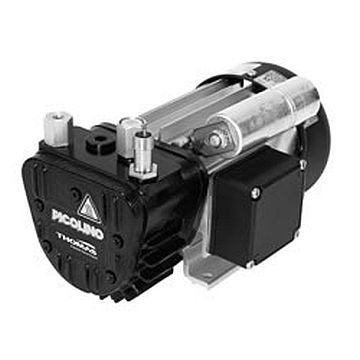

Thomas / Rietschle DTE10 oil-less rotary vane compressor with 0.59 HP, 230v, 60 Hz, 1-phase TEFC motor. Pump includes carbon vanes, pressure relief valve, and an integral 5 micron inlet filter. Replaces discontinued model DTN 10.
This model is not currently available. Factory part number 27750225.
This model is not currently available. Factory part number 27750225.
Brand:
Thomas
Flow Rate (CFM):
7
Flow Rate (LPM):
198
Max Pressure (PSIG):
11.6
Horsepower (60 Hz):
0.59
Voltage (60 Hz):
230
Voltage (50Hz):
230
Frequency (Hz):
50/60
Phase:
1-phase
Net Weight (Lbs):
22.7
Description: Thomas Service Kit. Kit includes Vanes, Filter Cartridge, Gaskets, Washers. Kit is compatible with standard Thomas (PICOLINO) DTE / VTE 10 models (This item currently has a tariff surcharge which will be added to your order as a separate line item. Tariff surcharges are subject to change.)
Availability: Please contact us at +1 (847) 540-0054 or sales@cfpco.com for estimated lead time
Downloads
These supporting documents are available for download:
