DTE 3 (3-ph)
Images may be representative.
Details

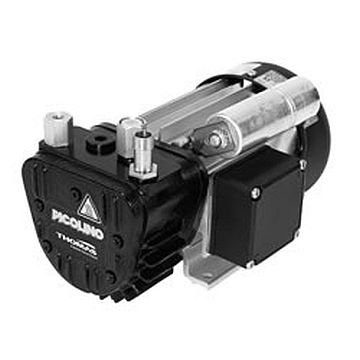

Thomas / Rietschle DTE3 oil-less rotary vane compressor with 0.19 HP, 200-277/346-480v, 60 Hz, 3-phase TEFC motor. Pump includes carbon vanes, pressure relief valve, and an integral 5 micron inlet filter. Factory part number 25140213.
Brand:
Thomas
Flow Rate (CFM):
2.4
Flow Rate (LPM):
68
Max Pressure (PSIG):
14.5
Horsepower (60 Hz):
0.19
Voltage (60 Hz):
200-277/346-480
Voltage (50Hz):
200-255/346-400
Frequency (Hz):
50/60
Phase:
3-phase
Net Weight (Lbs):
14.3
Description: Thomas Service Kit. Kit includes Vanes, Filter Cartridge, Gaskets, Washers. Kit is compatible with standard Thomas (PICOLINO) DTE / VTE 3 models (This item currently has a tariff surcharge which will be added to your order as a separate line item. Tariff surcharges are subject to change.)
Availability: In Stock
Downloads
These supporting documents are available for download:
