DTE 6 (3-ph)
Images may be representative.
Details

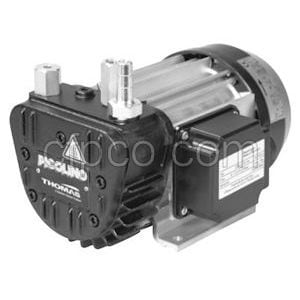

Thomas / Rietschle DTE6 oil-less rotary vane compressor with 0.40 HP, 200-277/346-480v, 60 Hz, 3-phase TEFC motor. Pump includes carbon vanes, pressure relief valve, and an integral 5 micron inlet filter. Factory part number 25170214.
Brand:
Thomas
Flow Rate (CFM):
4.2
Flow Rate (LPM):
119
Max Pressure (PSIG):
14.5
Horsepower (60 Hz):
0.4
Voltage (60 Hz):
200-277/346-480
Voltage (50Hz):
200-255/346-400
Frequency (Hz):
50/60
Phase:
3-phase
Item Length (In):
8.66
Item Width (In):
5.98
Item Height (In):
6.14
Net Weight (Lbs):
16.53
Description: Thomas Service Kit. Kit includes Vanes, Filter Cartridge, Gaskets, Washers. Kit is compatible with standard Thomas (PICOLINO) DTE / VTE 6 models (This item currently has a tariff surcharge which will be added to your order as a separate line item. Tariff surcharges are subject to change.)
Availability: Please contact us at +1 (847) 540-0054 or sales@cfpco.com for estimated lead time
