DTE 8 (230v)
Images may be representative.
Details

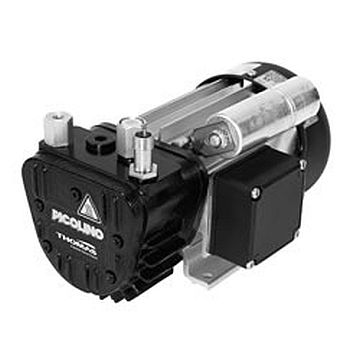

Thomas / Rietschle DTE8 oil-less rotary vane compressor with 0.59 HP, 230v, 60 Hz, 1-phase TEFC motor. Pump includes carbon vanes, pressure relief valve, and an integral 5 micron inlet filter.
This model is currently not available. Factory part number 23660225.
This model is currently not available. Factory part number 23660225.
Brand:
Thomas
Flow Rate (CFM):
5.6
Flow Rate (LPM):
159
Max Pressure (PSIG):
8.7
Horsepower (60 Hz):
0.59
Voltage (60 Hz):
230
Voltage (50Hz):
230
Frequency (Hz):
50/60
Phase:
1-phase
Item Length (In):
9.8
Item Width (In):
6.14
Item Height (In):
6.14
Net Weight (Lbs):
17.64
Description: Thomas Service Kit. Kit includes Vanes, Filter Cartridge, Gaskets, Washers. Kit is compatible with standard Thomas (PICOLINO) DTE / VTE 8 models (This item currently has a tariff surcharge which will be added to your order as a separate line item. Tariff surcharges are subject to change.)
Availability: In Stock
Downloads
These supporting documents are available for download:
