Elmo Rietschle 2BH14101HK46
Images may be representative.
Details

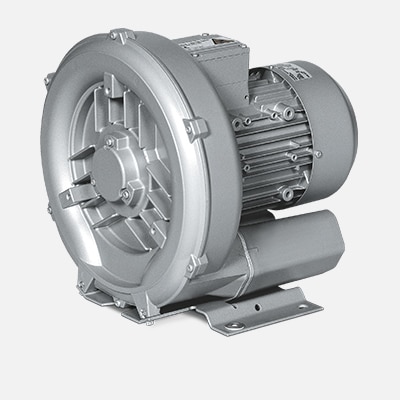

Elmo Rietschle two-stage side channel blower integrally flanged to an IE3 premium efficient 4 HP, 230/460 volt, 60 Hz, 3-phase TEFC (IP55) motor. Motor is dual rated for 50 Hz operation. Standard features include integrated silencers, and 1-1/2 inch threaded connections. Precision German Engineering ensures reliable, long-term operation. An inlet filter and relief valve are strongly recommended and sold separately.
Brand:
Elmo Rietschle
Flow Rate (CFM):
105
Max Pressure (PSIG):
6.4
Max Pressure (In H2O):
177
Max Vacuum (in HgV):
10.3
Max Vacuum (in H2O):
141
Horsepower (60 Hz):
4
Voltage (60 Hz):
230/460
Frequency (Hz):
50/60
Phase:
3-phase
Noise Level (dBA):
69
Number of Stages:
2
Connection Size:
1-1/2
Connection Type:
Threaded
