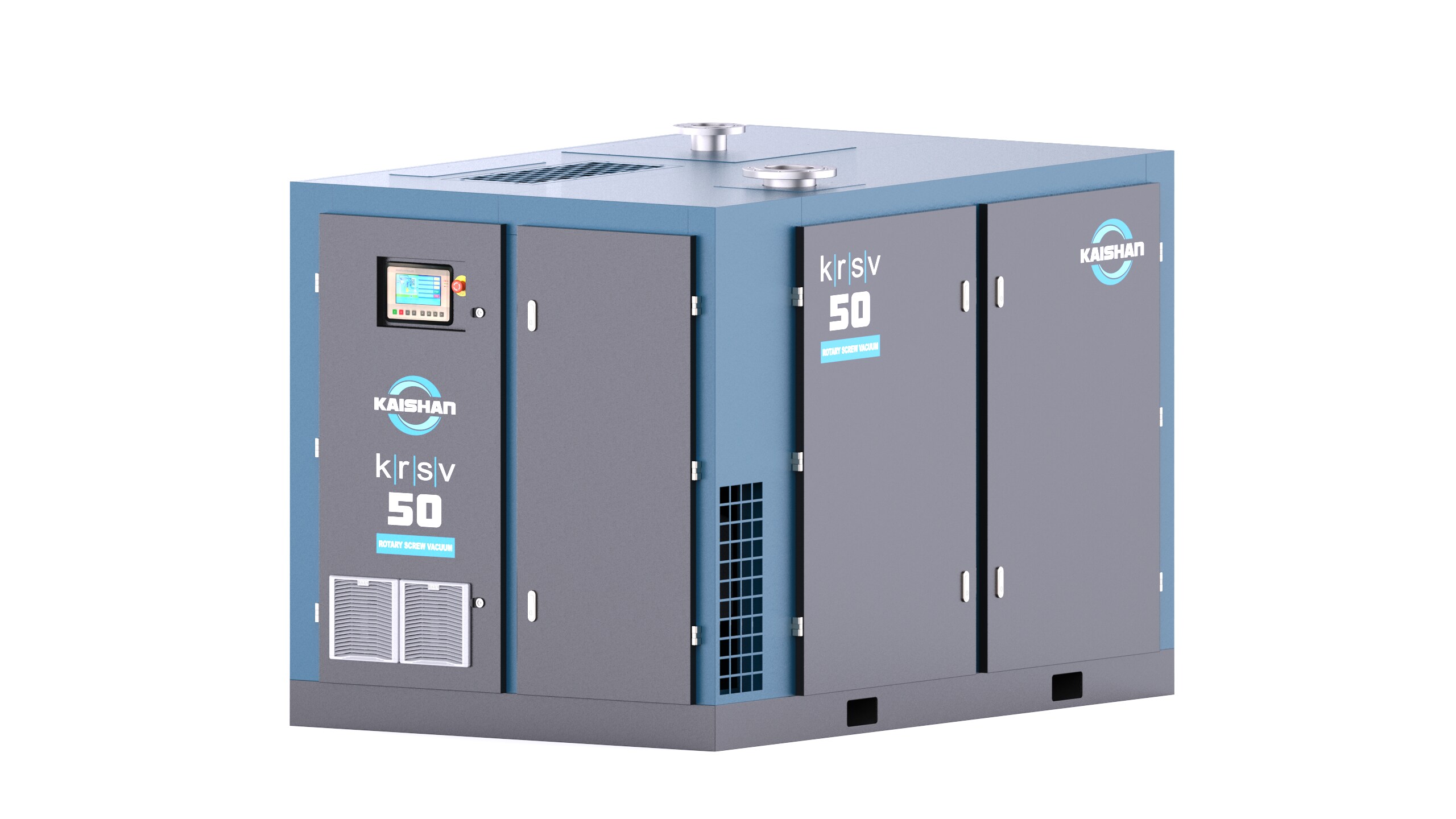

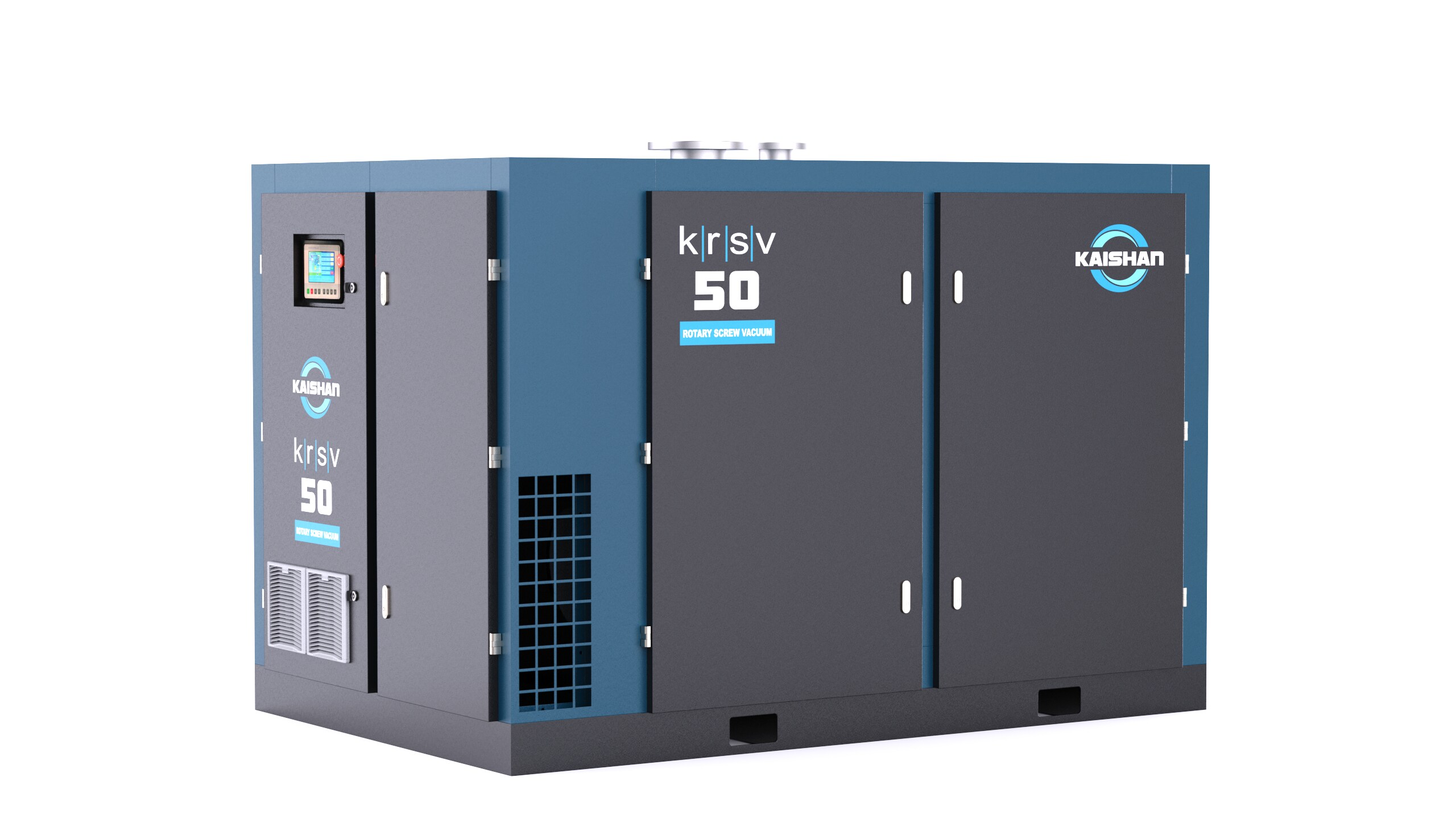

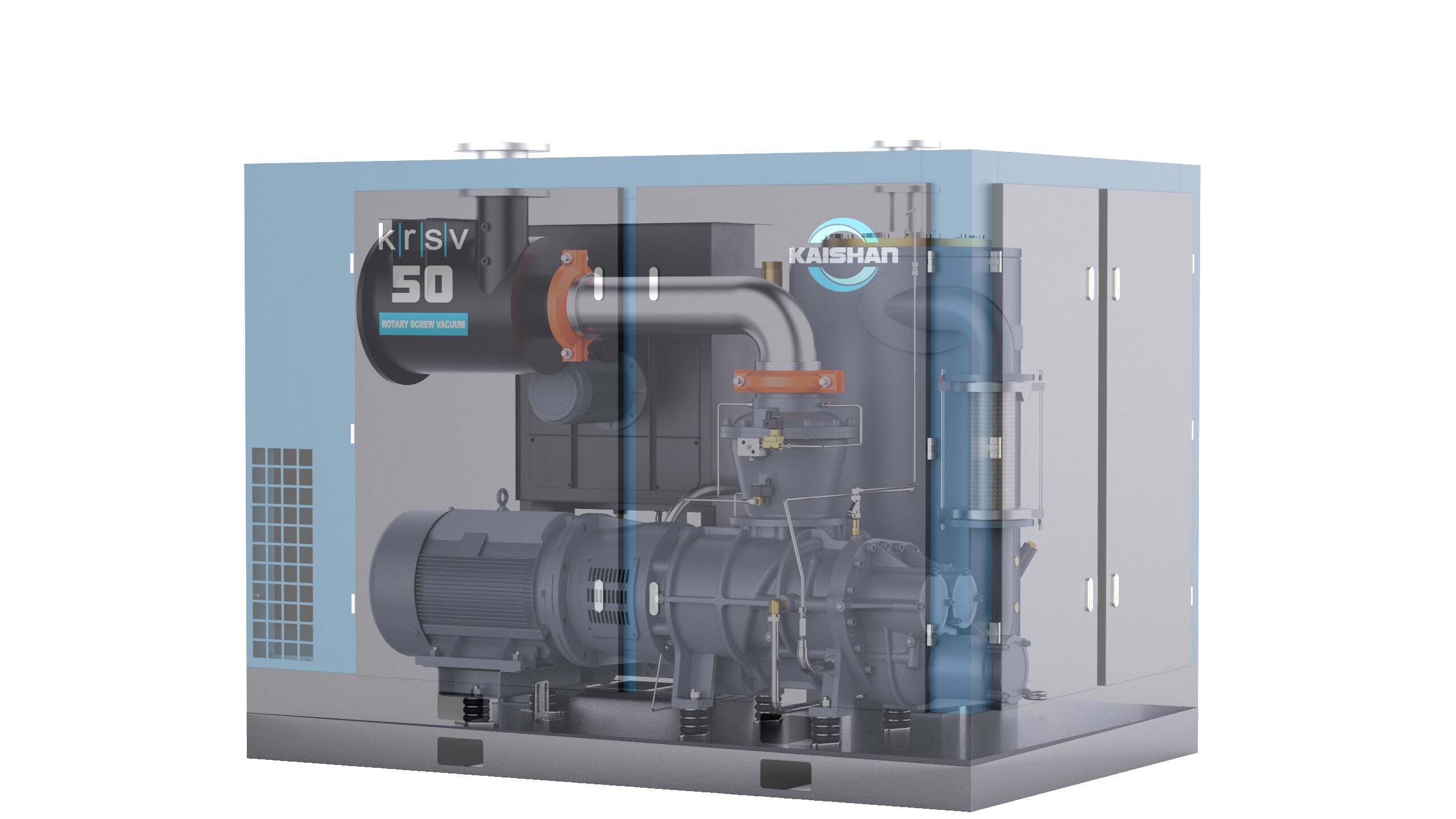

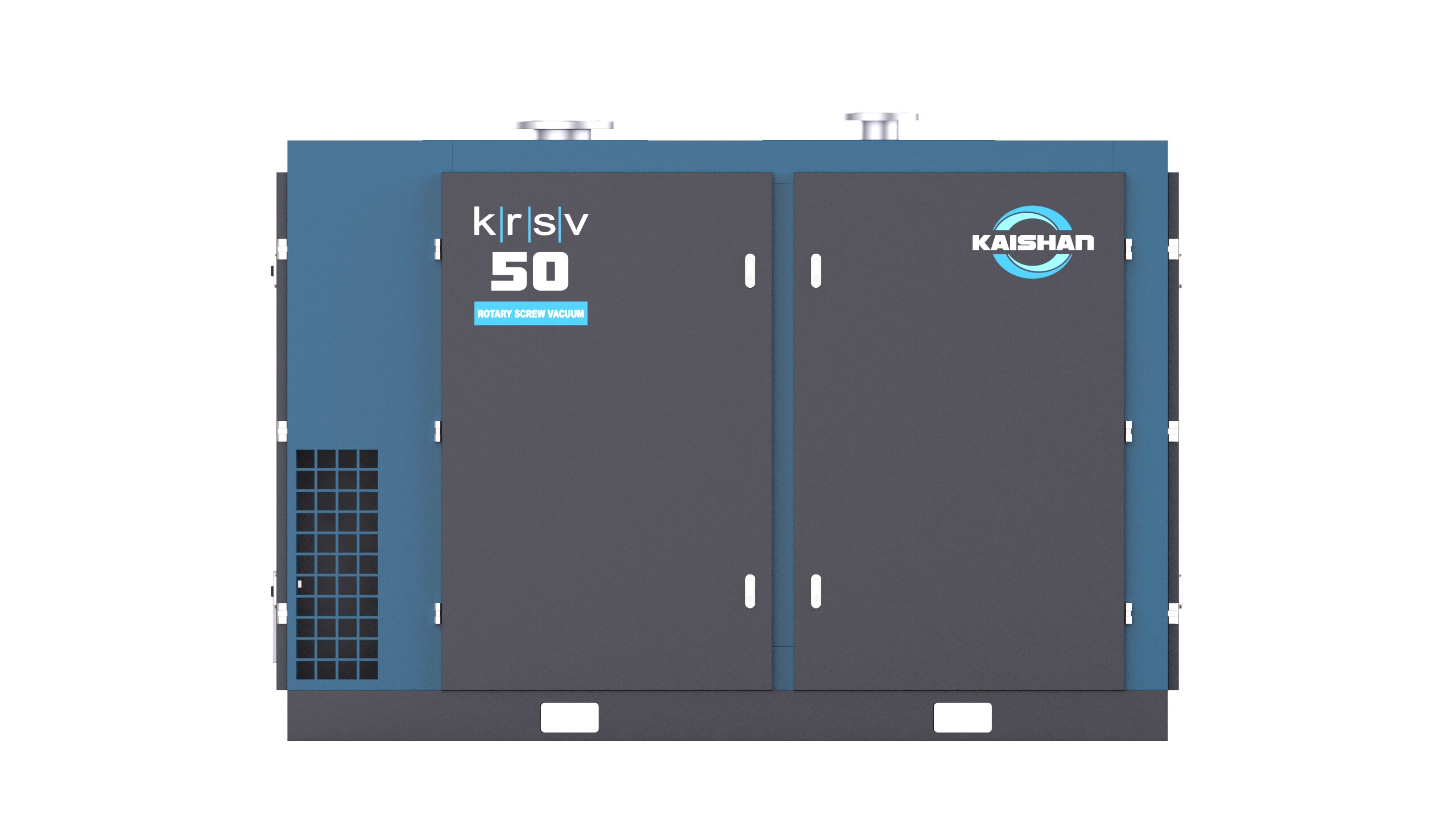

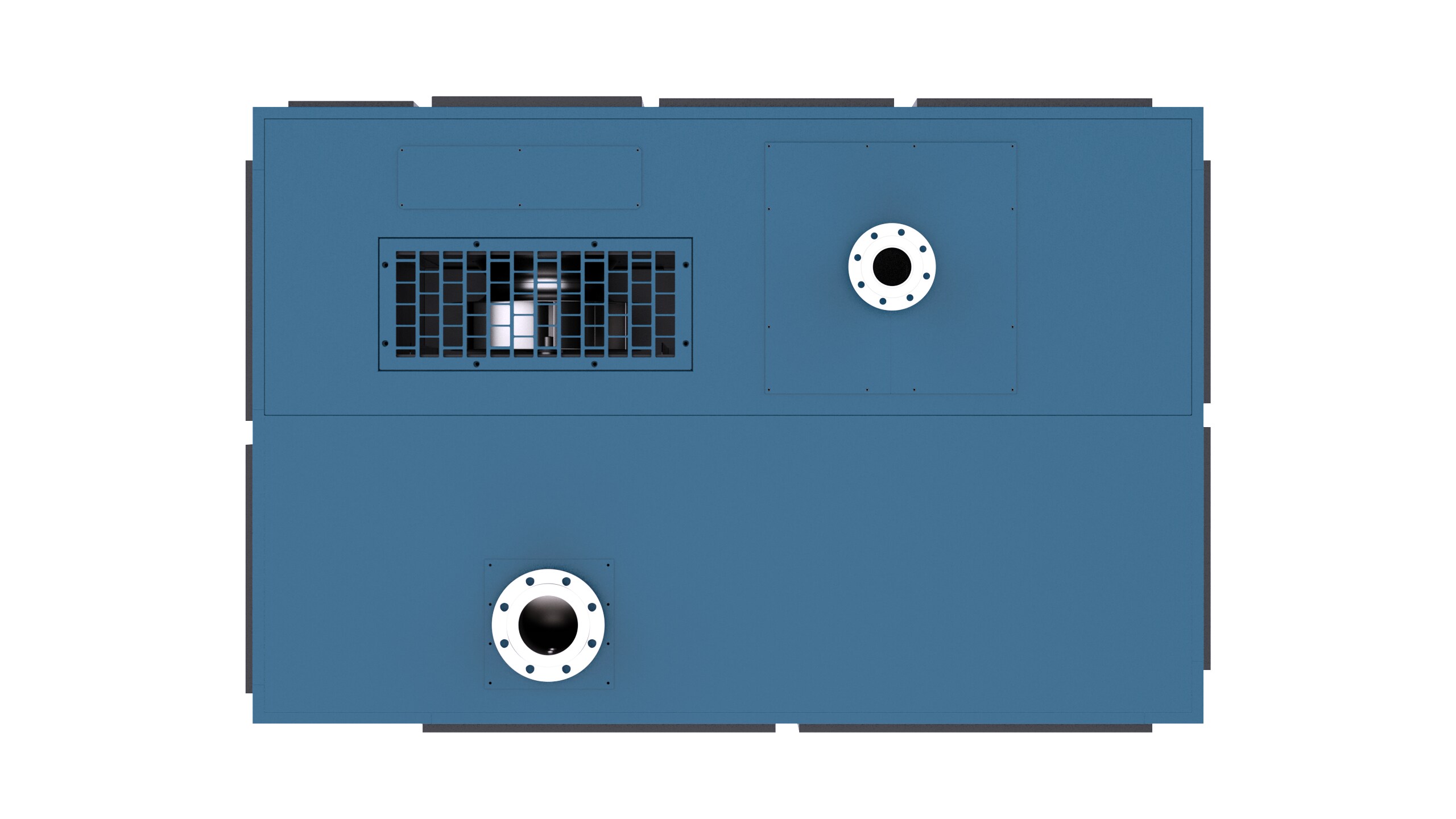

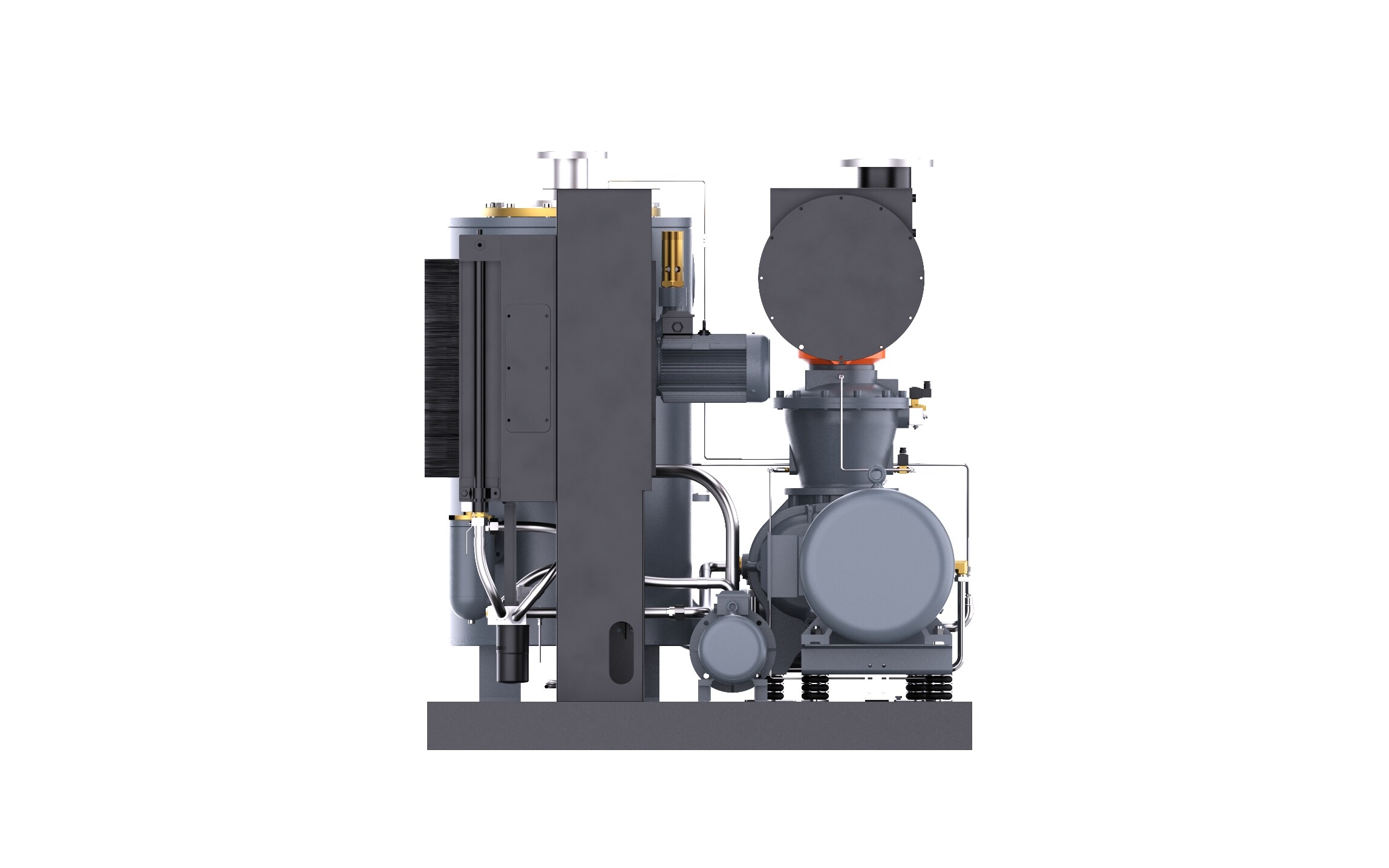

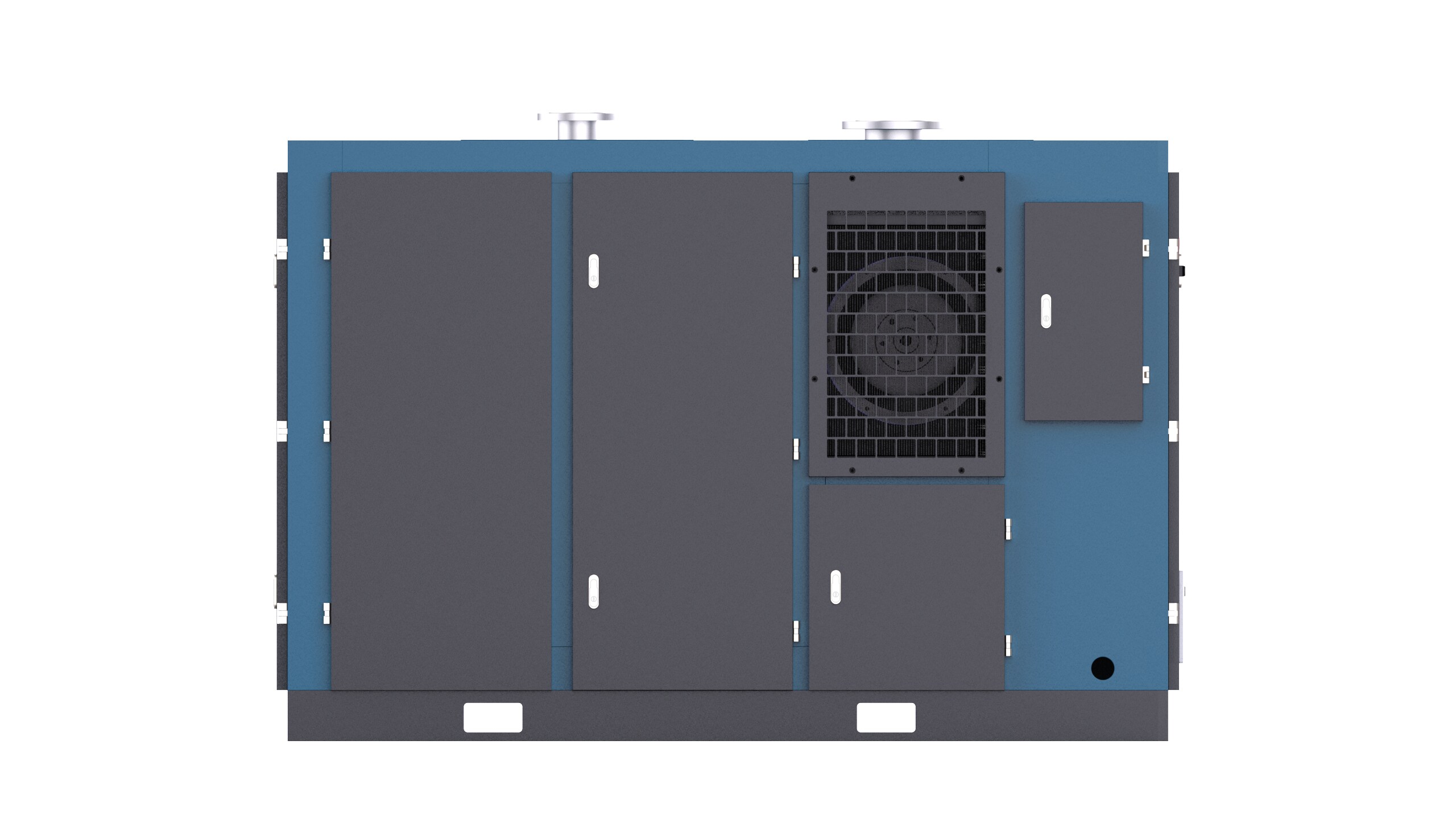

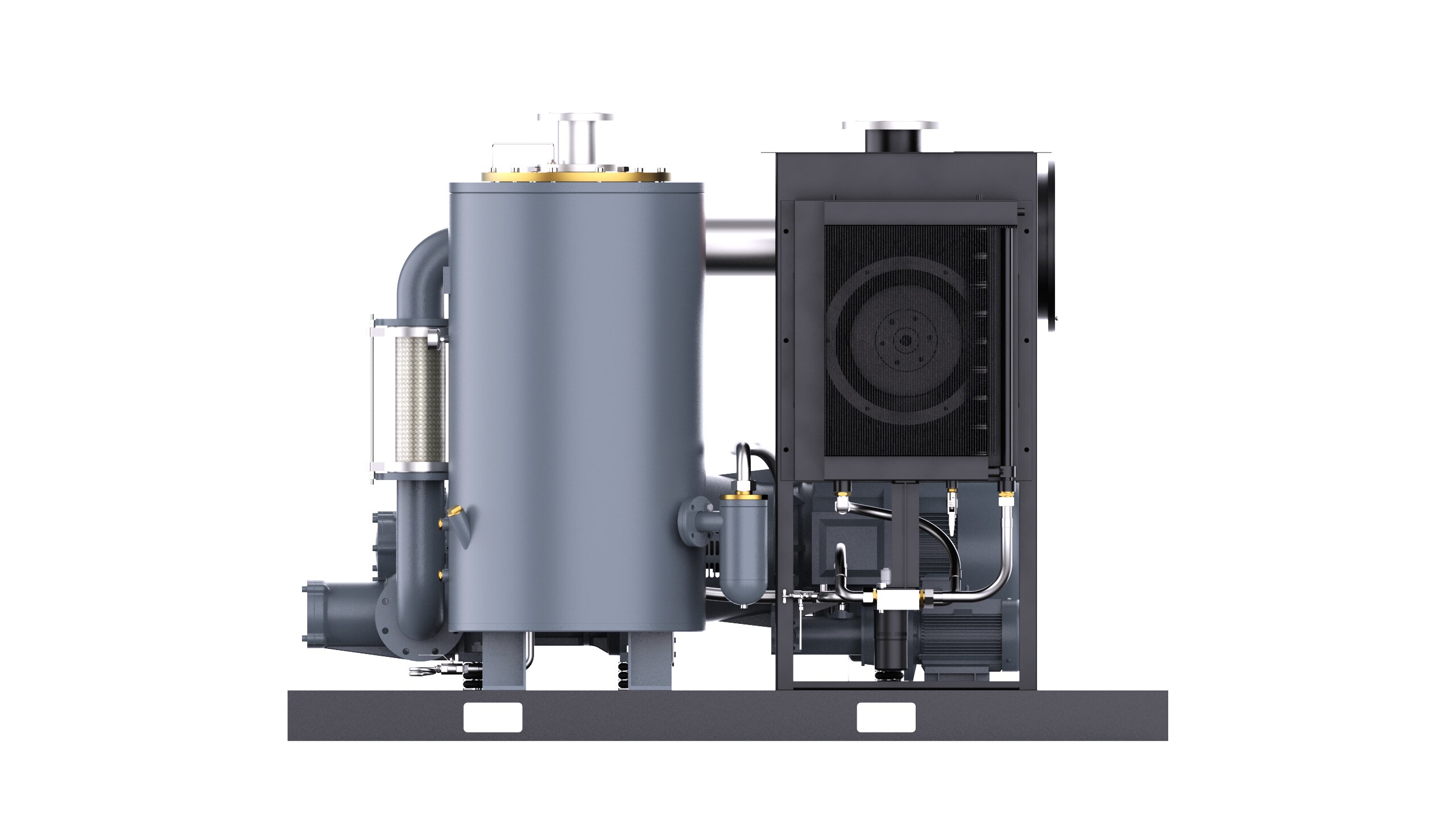

Kaishan KRSV-125

Contact Us For Pricing Information

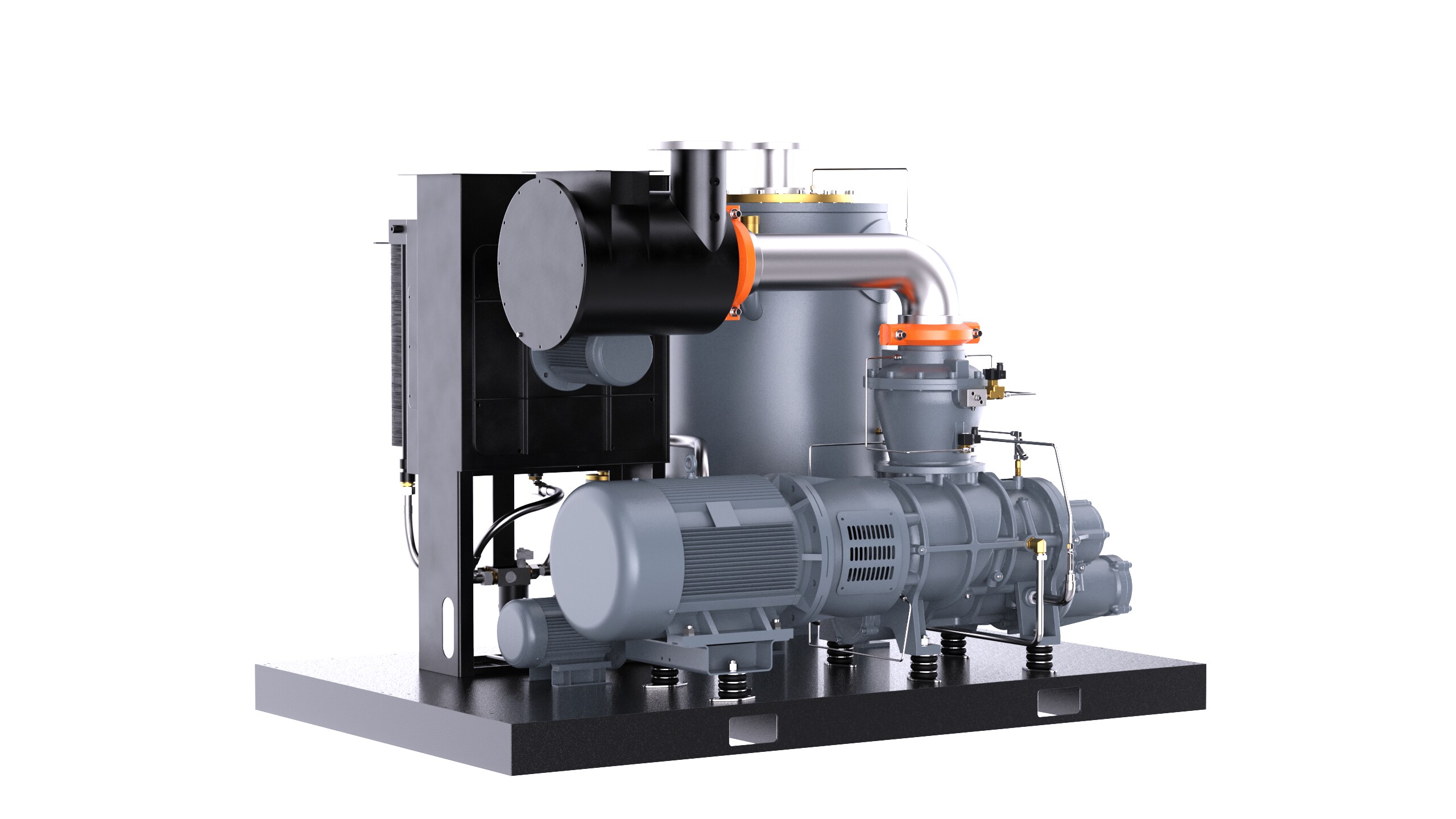

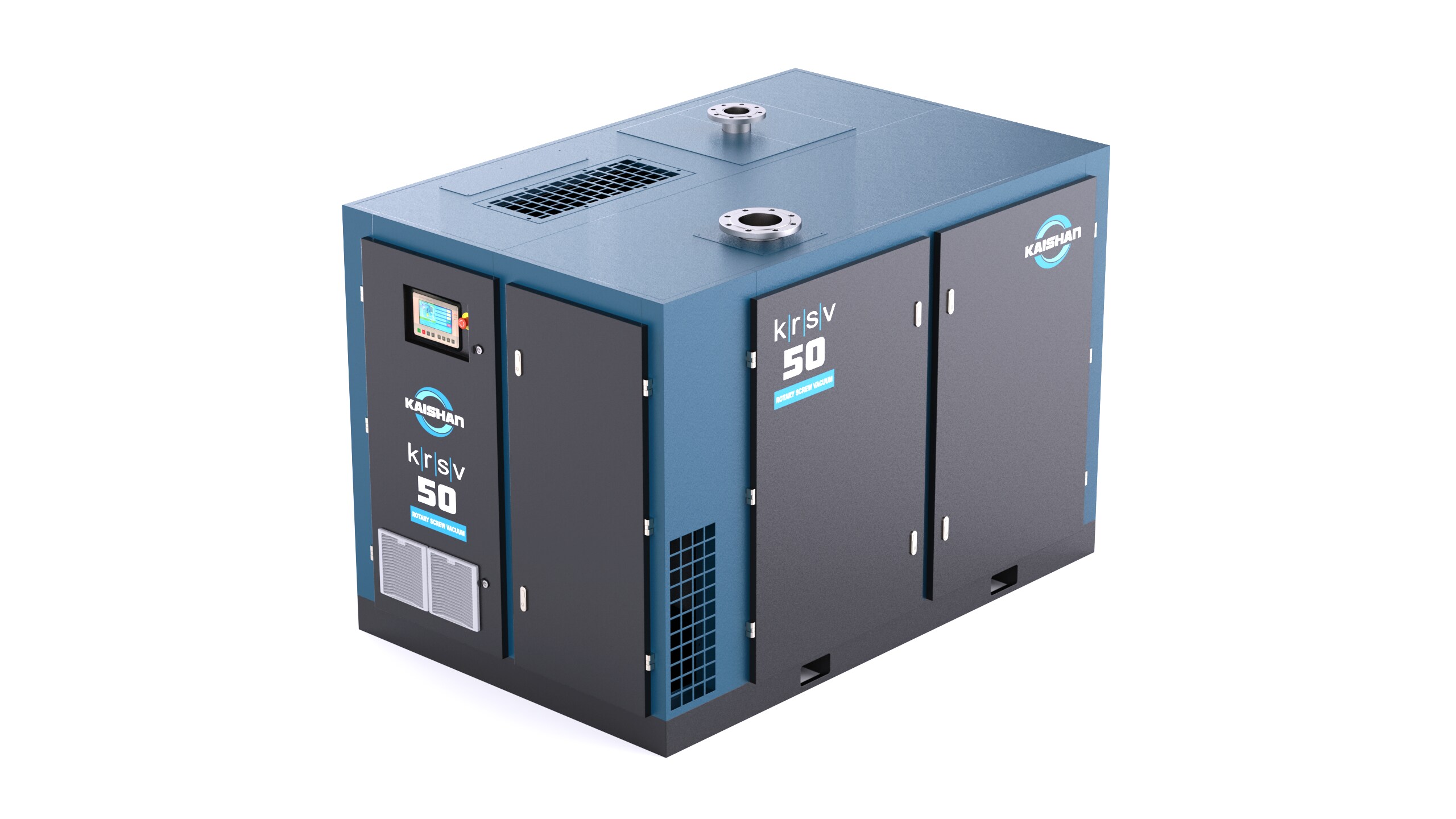

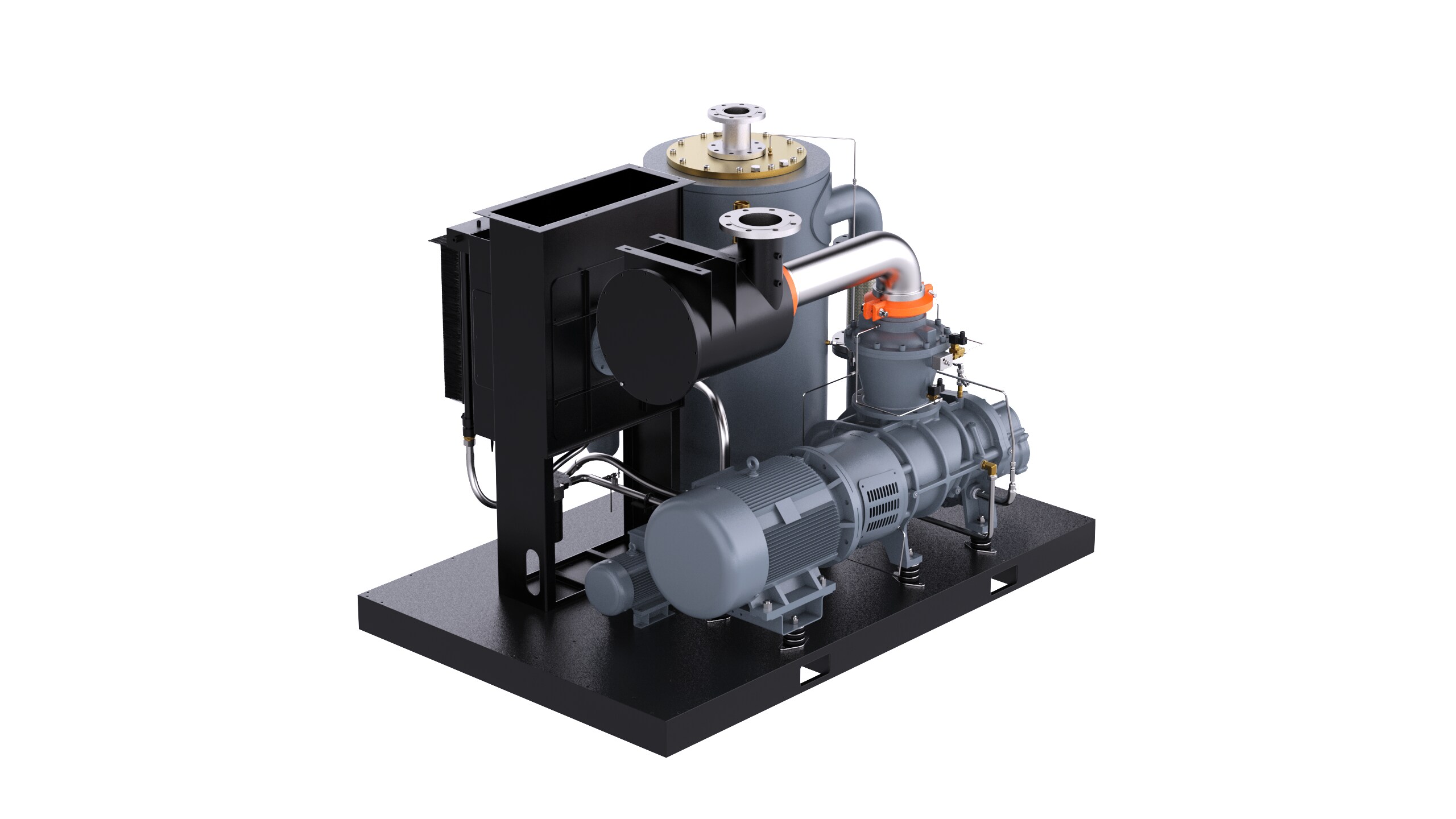

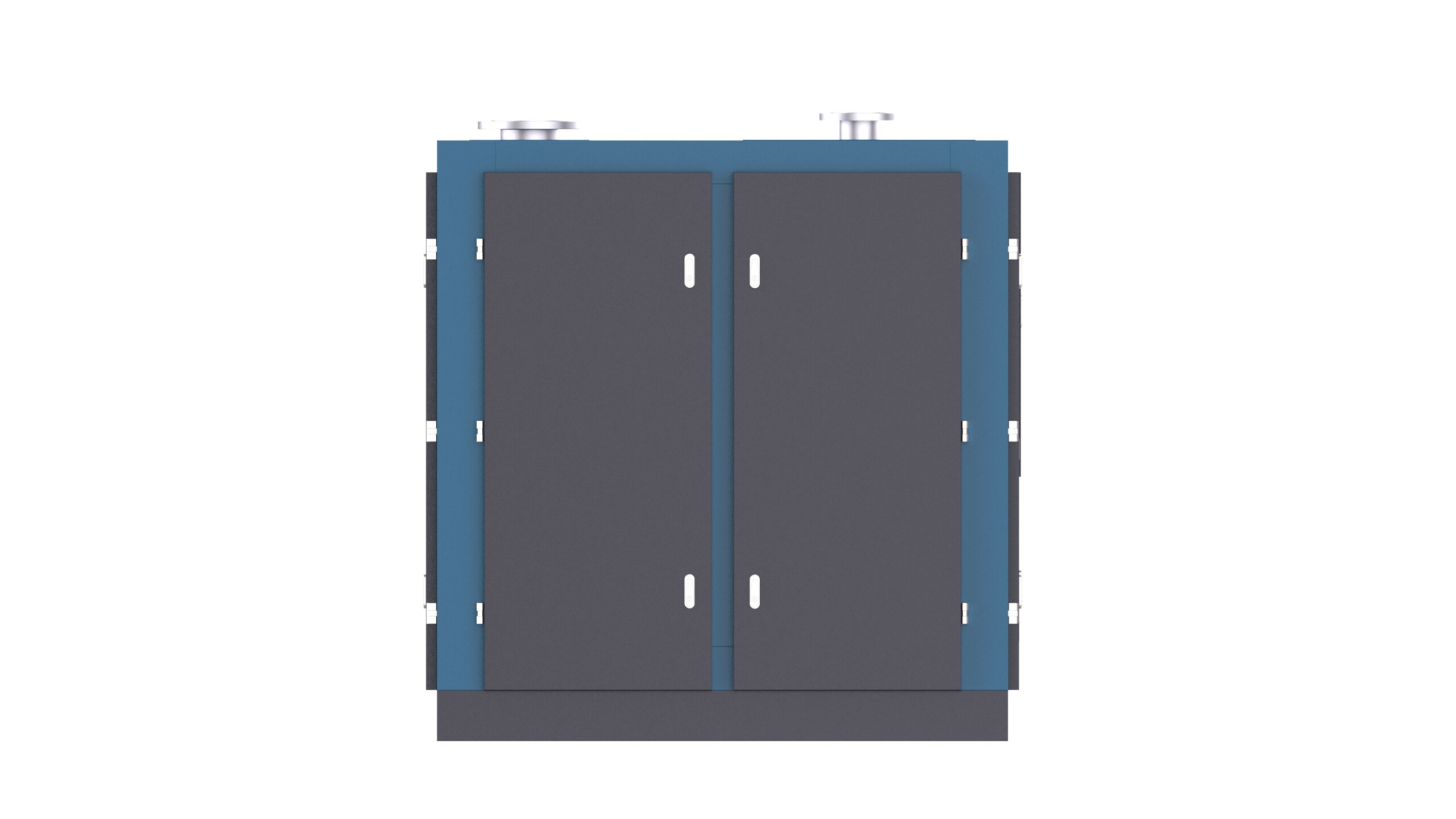

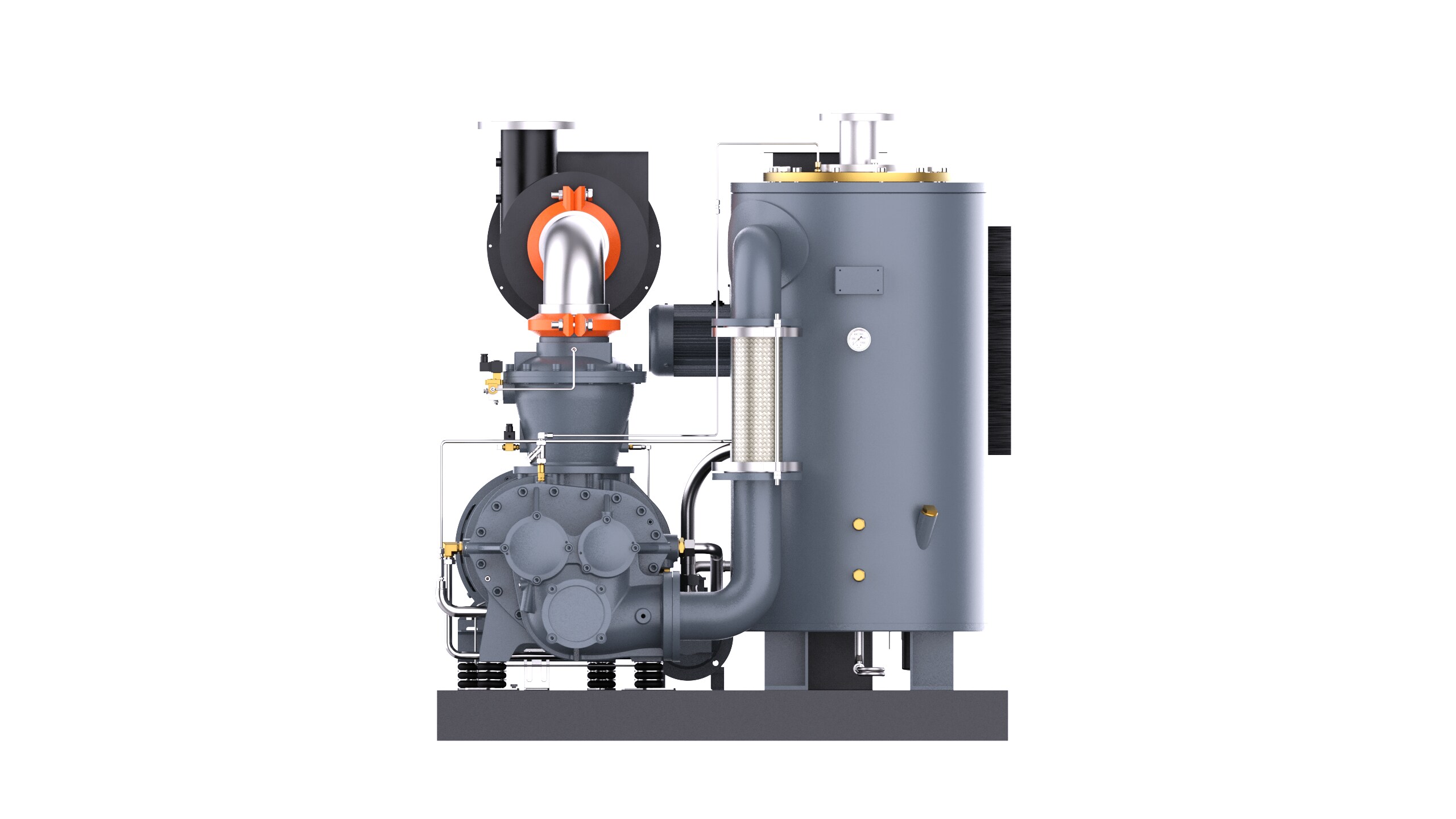

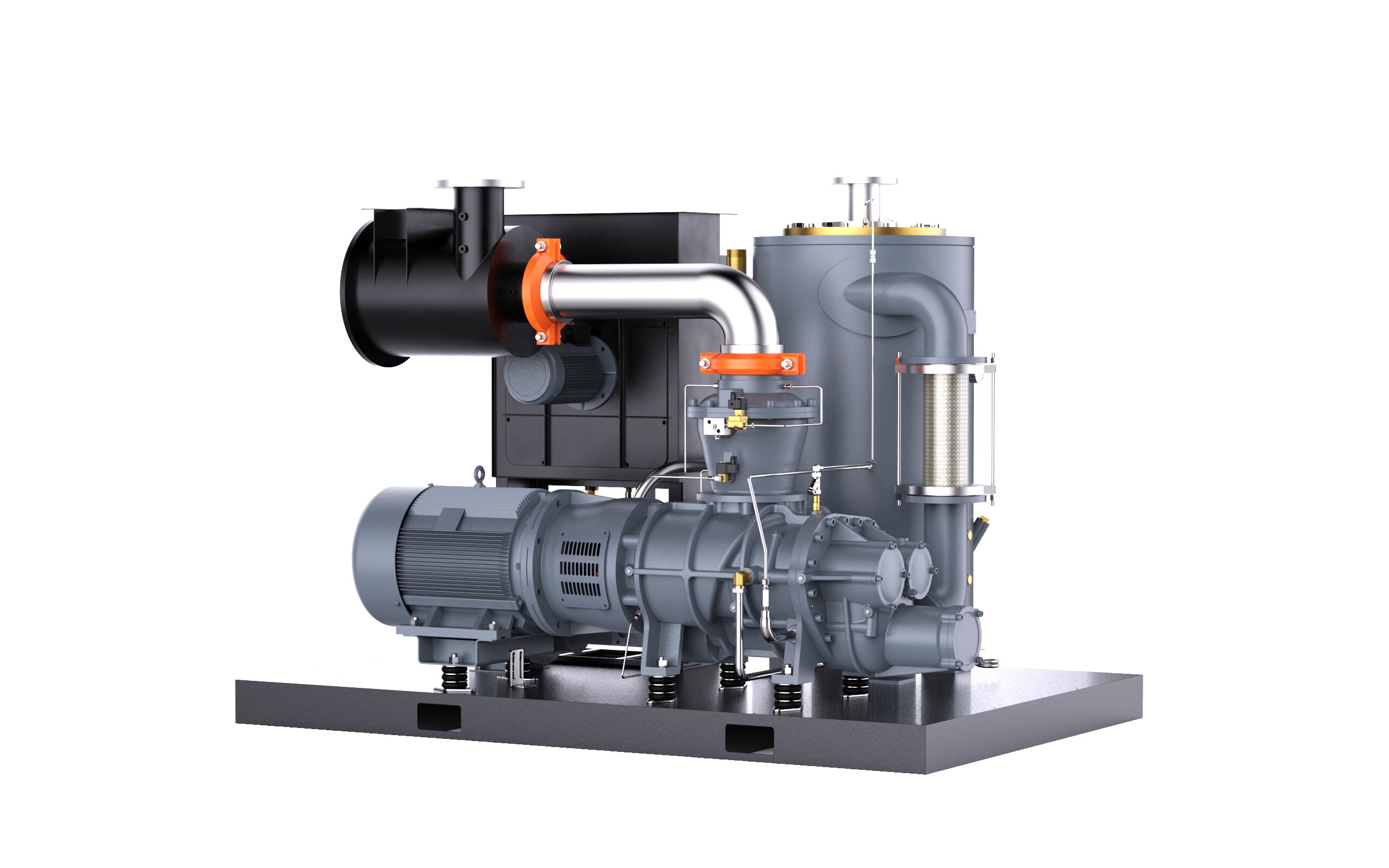

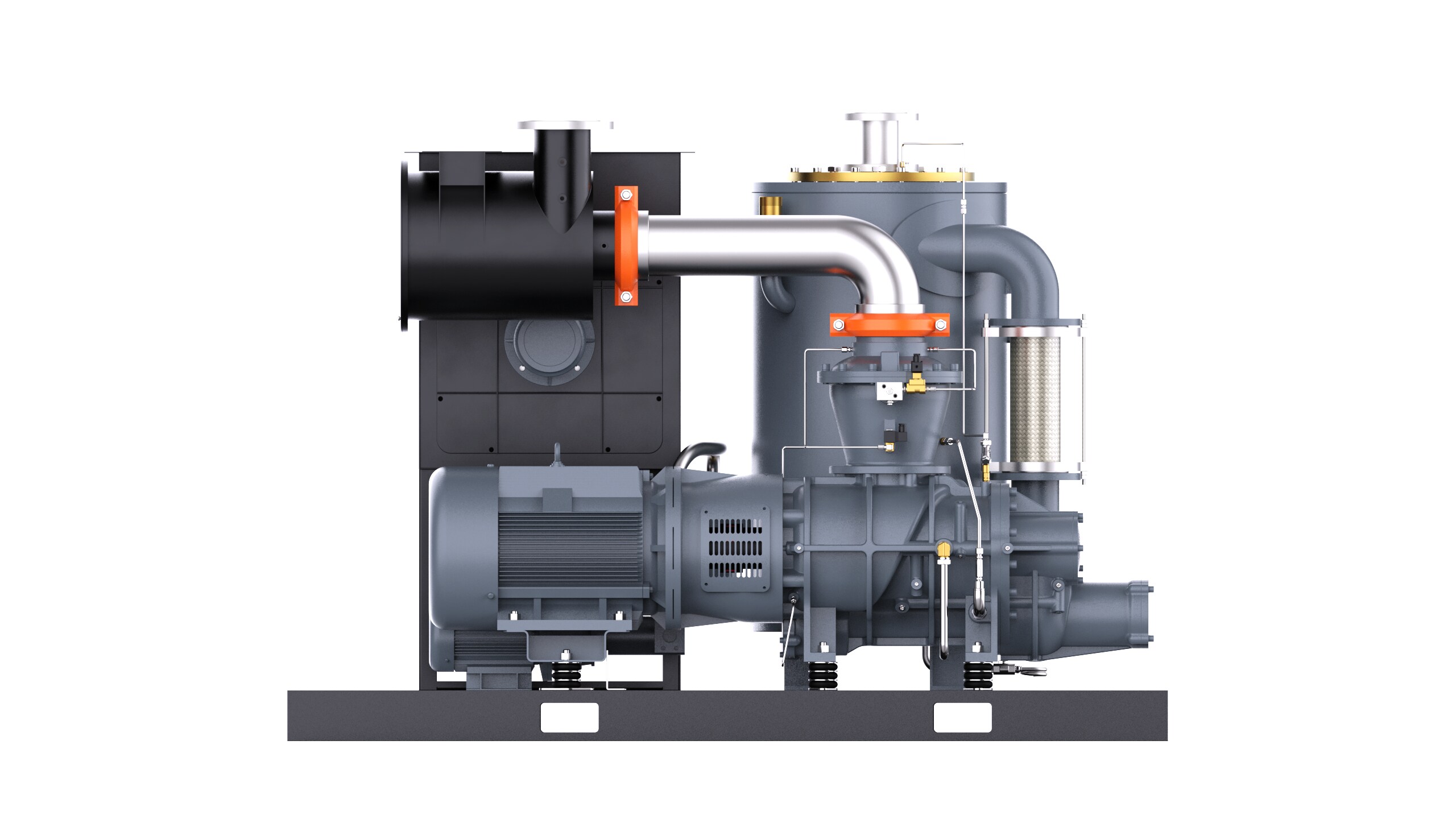

125 HP High Efficiency, Air-cooled, Oil-flooded, Variable Speed Rotary Screw Vacuum Pump
Item: KRSV-125

Details

This high efficiency 125 HP variable speed rotary screw vacuum pump delivers a maximum flow of 3505 ACFM and a maximum vacuum level of 29.9" Hg. Features: • 5-Year air end warranty • 5-Year major component warranty • 1-year full warranty • Single stage rotary screw vacuum pump • Variable discharge port (VDP) – Ensures highest efficiency at all vacuum levels • Up to 29.9 inches HgV • Direct coupled airend • TEFC premium efficient main motor • Highly efficient centrifugal fan design • "SKYv" Series air end • Increased reliability • Independent oil pump • All consumables are sourced and inventoried in North America • Lowest lifetime cost of ownership • Advanced air end design • Efficient and reliable cooling air system • Efficient inlet air filtration down to 5 micron • Stainless steel control tubing • Accessibility to the components to ensure easy maintenance • 115°F ambient capability • Reduced service cost • Maximum output with less energy • Quiet sound enclosure
Brand:
Kaishan

Flow Rate (CFM):
3505

Max Vacuum (in HgV):
29.9

Horsepower (60 Hz):
125

Voltage (60 Hz):
460

Frequency (Hz):
60

Phase:
3-phase

Noise Level (dBA):
80

Net Weight (Lbs):
11640
