VTE 3 (230v)
Images may be representative.
Details

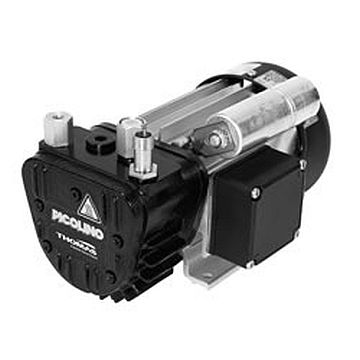

Thomas / Rietschle VTE3 oil-less rotary vane vacuum pump with 0.2 HP, 230v, 60 Hz, 1-phase TEFC motor. Pump includes carbon vanes and an integral 5 micron inlet filter. A vacuum relief valve is optional and sold separately. Factory part number 25130110.
Brand:
Thomas
Flow Rate (CFM):
2.4
Flow Rate (LPM):
68
Max Vacuum (in HgV):
25.4
Max Vacuum (Torr):
115
Horsepower (60 Hz):
0.2
Voltage (60 Hz):
230
Voltage (50Hz):
230
Frequency (Hz):
50/60
Phase:
1-phase
Net Weight (Lbs):
14.33
Description: Thomas Service Kit. Kit includes Vanes, Filter Cartridge, Gaskets, Washers. Kit is compatible with standard Thomas (PICOLINO) DTE / VTE 3 models (This item currently has a tariff surcharge which will be added to your order as a separate line item. Tariff surcharges are subject to change.)
Availability: Please contact for lead time
Downloads
These supporting documents are available for download:
