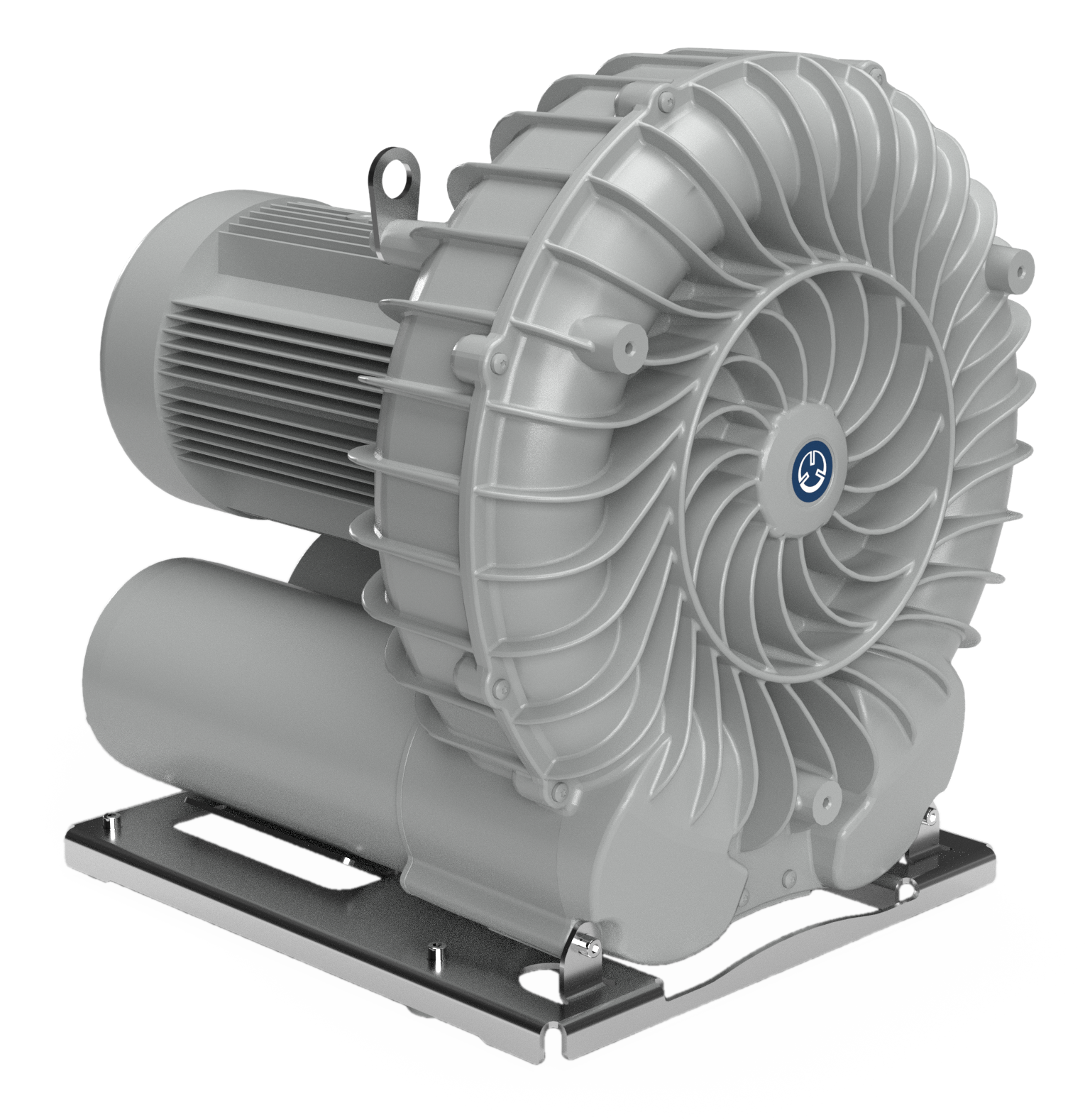

Becker SV1100/1 (12.1 HP, 3-ph) Pressure Package

Images may be representative.

$14,222.00
Becker single-stage regenerative blower pressure package with 12.1 HP, 3-ph, 230/460v motor. Fully assmbled with inlet filter and pressure relief valve. (This item currently has a 9.1% tariff surcharge which will be added to your order as a separate line item offline. Tariff surcharges are subject to change.)
Item: SV1100/1 (12.1 HP, 3-ph) Pressure Package
Back

Details

Becker single-stage side channel blower pressure package with IE3 premium efficiency 12.1 HP, 230/460v, 60 Hz, 3-phase, TEFC (IP55) motor. Standard features include heavy duty construction, integrated inlet and discharge silencers for quiet operation, and a UL/CSA listed motor with class F insulation. This fully-assembled, high-quality blower package is complete with an inlet filter silencer, relief valve, and pressure gauge.
Brand:
Becker

Flow Rate (CFM):
735

Max Pressure (In H2O):
44

Horsepower (60 Hz):
12.1

Voltage (60 Hz):
230/460

Frequency (Hz):
60

Phase:
3-phase

Noise Level (dBA):
76

Number of Stages:
1

Net Weight (Lbs):
260


Downloads

These supporting documents are available for download:

Becker SV 1100-1 Data Sheet

Becker SV 1100-1 Operating Manual

Becker SV 1100-1 Parts List
