Elmo Rietschle 2BH18000AK26Z

Images may be representative.

$7,149.05 $7,525.32

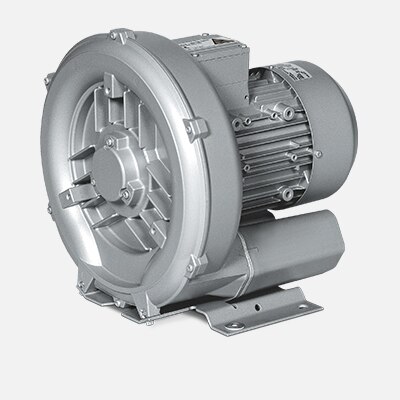

Elmo Rietschle single-stage regen blower, 13.3 HP, 3-phase
Item: 2BH18000AK26Z
Back

Details

Elmo Rietschle single-stage side channel blower integrally flanged to an IE3 premium efficient 13.3 HP, 230/460 volt, 60 Hz, 3-phase TEFC (IP55) motor. Motor is dual rated for 50 Hz operation. Standard features include integrated silencers, and 2-1/2 inch NPT connections. Precision German Engineering ensures reliable, long-term operation. An inlet filter and relief valve are strongly recommended and sold separately.
Brand:
Elmo Rietschle

Flow Rate (CFM):
363

Max Pressure (PSIG):
5.8

Max Pressure (In H2O):
161

Max Vacuum (in HgV):
11.2

Max Vacuum (in H2O):
153

Horsepower (60 Hz):
13.3

Voltage (60 Hz):
230/460

Frequency (Hz):
50/60

Phase:
3-phase

Noise Level (dBA):
75

Number of Stages:
1

Connection Size:
2-1/2

Connection Type:
NPT (F)
