Elmo Rietschle VC303 (10 HP, 3-ph, 200v)

Call for Assistance

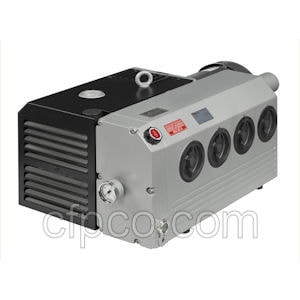

Elmo Rietschle oil lubricated vane vacuum pump
Item: VC303 (10 HP, 3-ph, 200v)

Details

Elmo Rietschle oil-lubricated rotary vane vacuum pump with 10 HP, 200v, 60 Hz, 3-phase TEFC motor. Standard features include special alloy vanes, non-return valve, gas ballast valve, easy access exhaust oil separator with replaceable elements, back pressure gauge, sound attenuating cover, and initial fill of oil. An inlet filter is highly recommended and sold separately.
Brand:
Elmo Rietschle

Flow Rate (CFM):
212

Max Vacuum (in HgV):
29.91

Max Vacuum (Torr):
0.3

Horsepower (60 Hz):
10

Voltage (60 Hz):
200

Frequency (Hz):
60

Phase:
3-phase

Noise Level (dBA):
74


Downloads

These supporting documents are available for download:
