Elmo Rietschle VC400 (No Motor)

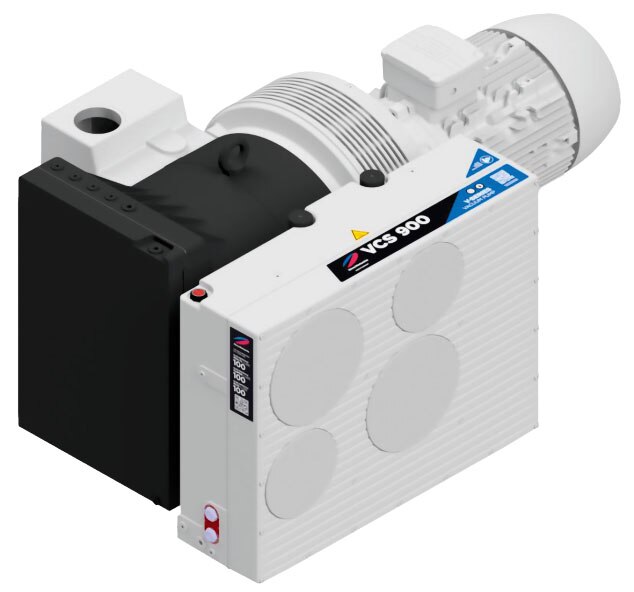

Images may be representative.
- Spotlight ItemsSpotlight
- Item Details & SpecificationsSpecifications
- Accessories & MaintenanceAccessories
Details
Elmo Rietschle oil-lubricated rotary vane vacuum pump with coupling and flange to accomodate a C-face NEMA motor. Standard features include a fine/coarse vacuum adjustment valve, special alloy vanes, non-return valve, gas ballast valve, easy access exhaust oil separator with replaceable elements, back pressure gauge, sound attenuating cover, and initial fill of oil. An inlet filter is highly recommended and sold separately.
Brand:
Elmo Rietschle
Flow Rate (CFM):
283
Max Vacuum (in HgV):
29.91
Max Vacuum (Torr):
0.3
Horsepower (60 Hz):
15
Noise Level (dBA):
75
