Republic HRC025
Images may be representative.
- Spotlight ItemsSpotlight
- Item Details & SpecificationsSpecifications
- Accessories & MaintenanceAccessories
- Downloads
Details

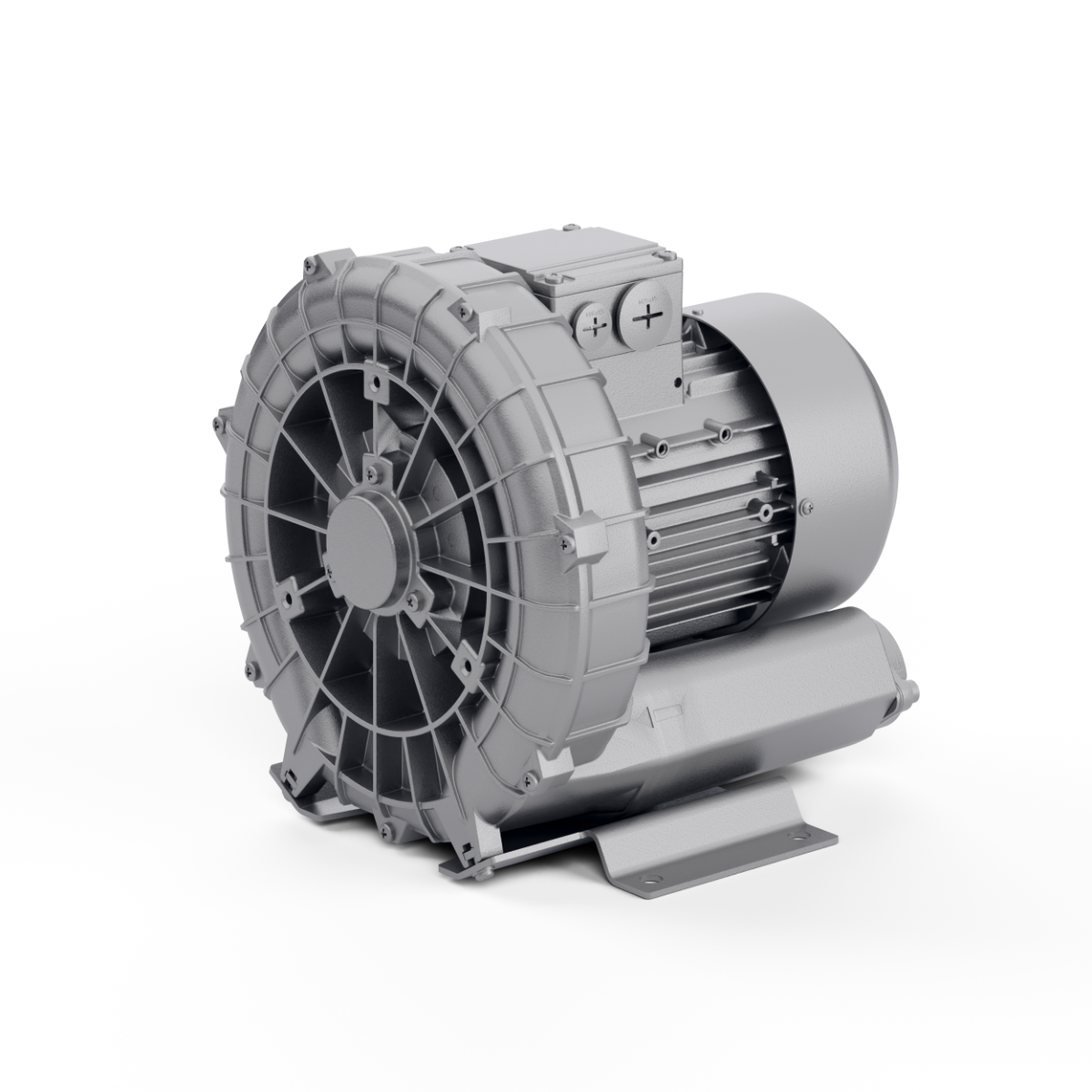

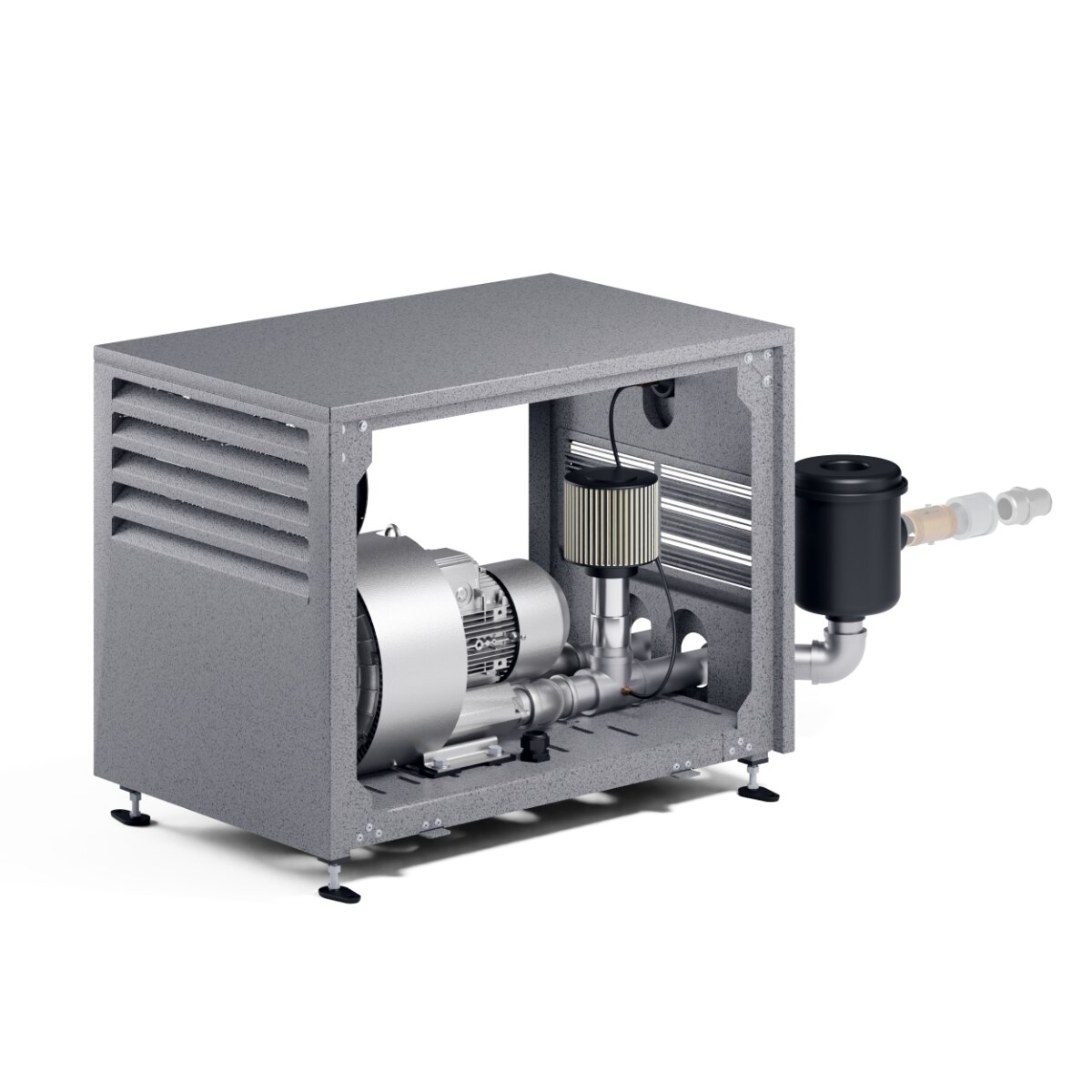

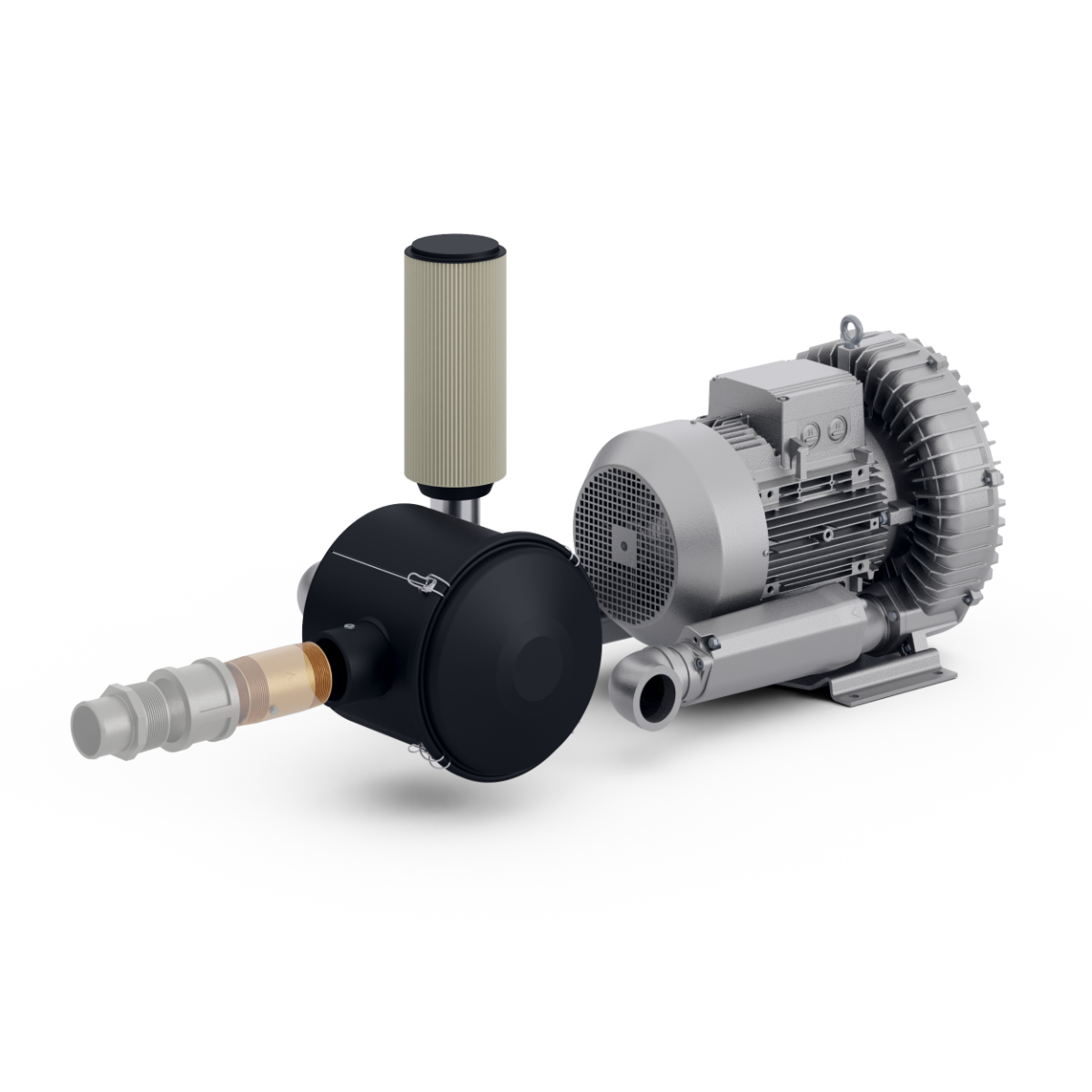

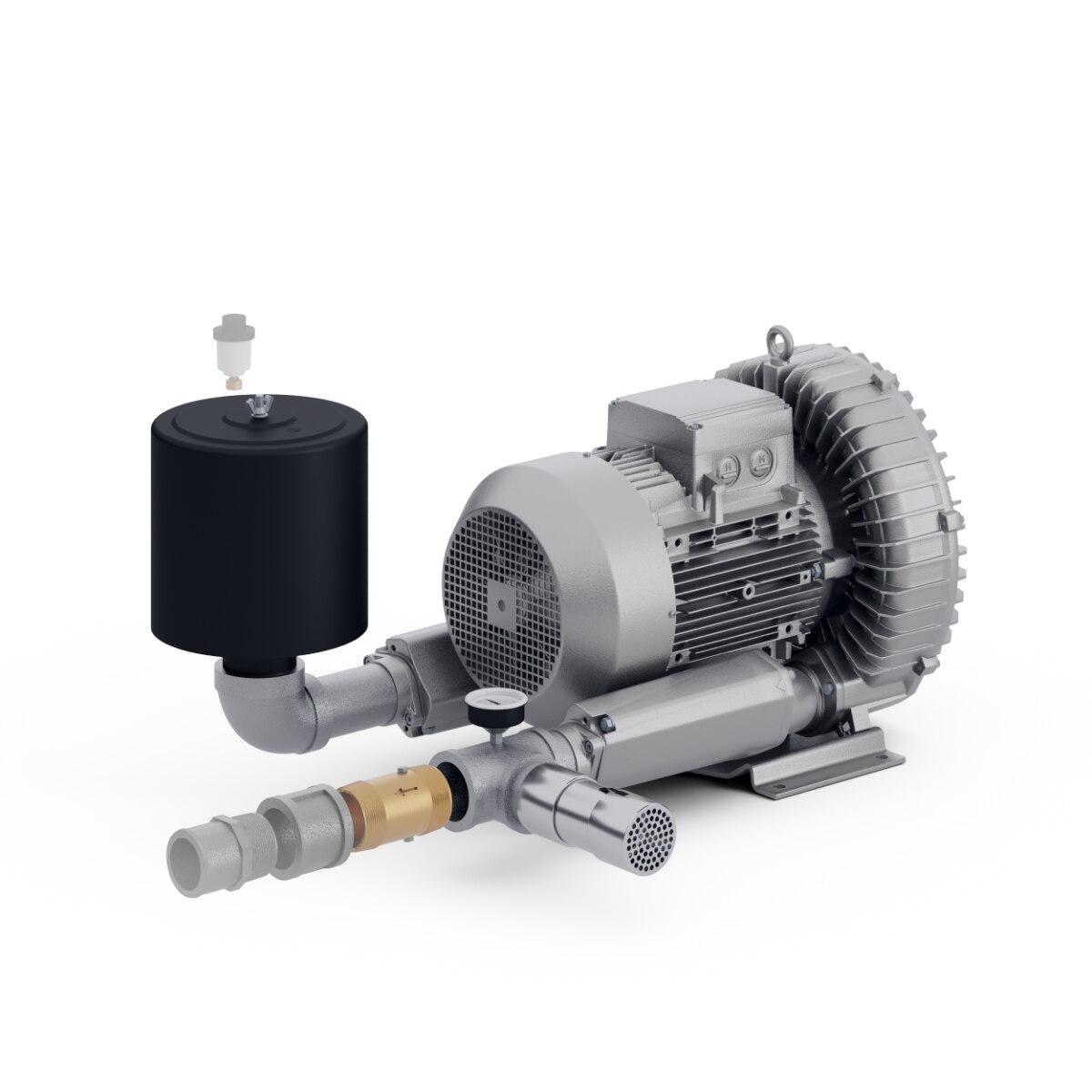

Republic HRC025 single-stage side channel blower with IE3 premium efficiency 0.3 HP, 50/60 Hz, 3-phase, wide-range voltage, TEFC (IP54) motor. Standard features include heavy duty aluminum construction, cool-running outboard bearings for long life, integrated inlet and discharge silencers for quiet operation, 1" NPT inlet and discharge connections, and a cUL, UL, and CE listed motor with class F insulation. An inlet filter and relief valve are strongly recommended and sold separately. Fully assembled packages with inlet filter, relief valve, gauge, and even sound enclosures are also available.
Brand:
Republic
Flow Rate (CFM):
36
Max Pressure (In H2O):
48
Max Vacuum (in H2O):
48
Horsepower (60 Hz):
0.3
Voltage (60 Hz):
220-275/345-415
Horsepower (50 Hz):
0.3
Voltage (50Hz):
200-240/345-415
Phase:
3-phase
Noise Level (dBA):
53
Number of Stages:
1
Connection Size:
1
Connection Type:
NPT
