Republic HRC1102
Images may be representative.
- Spotlight ItemsSpotlight
- Item Details & SpecificationsSpecifications
- Accessories & MaintenanceAccessories
- Downloads
Details

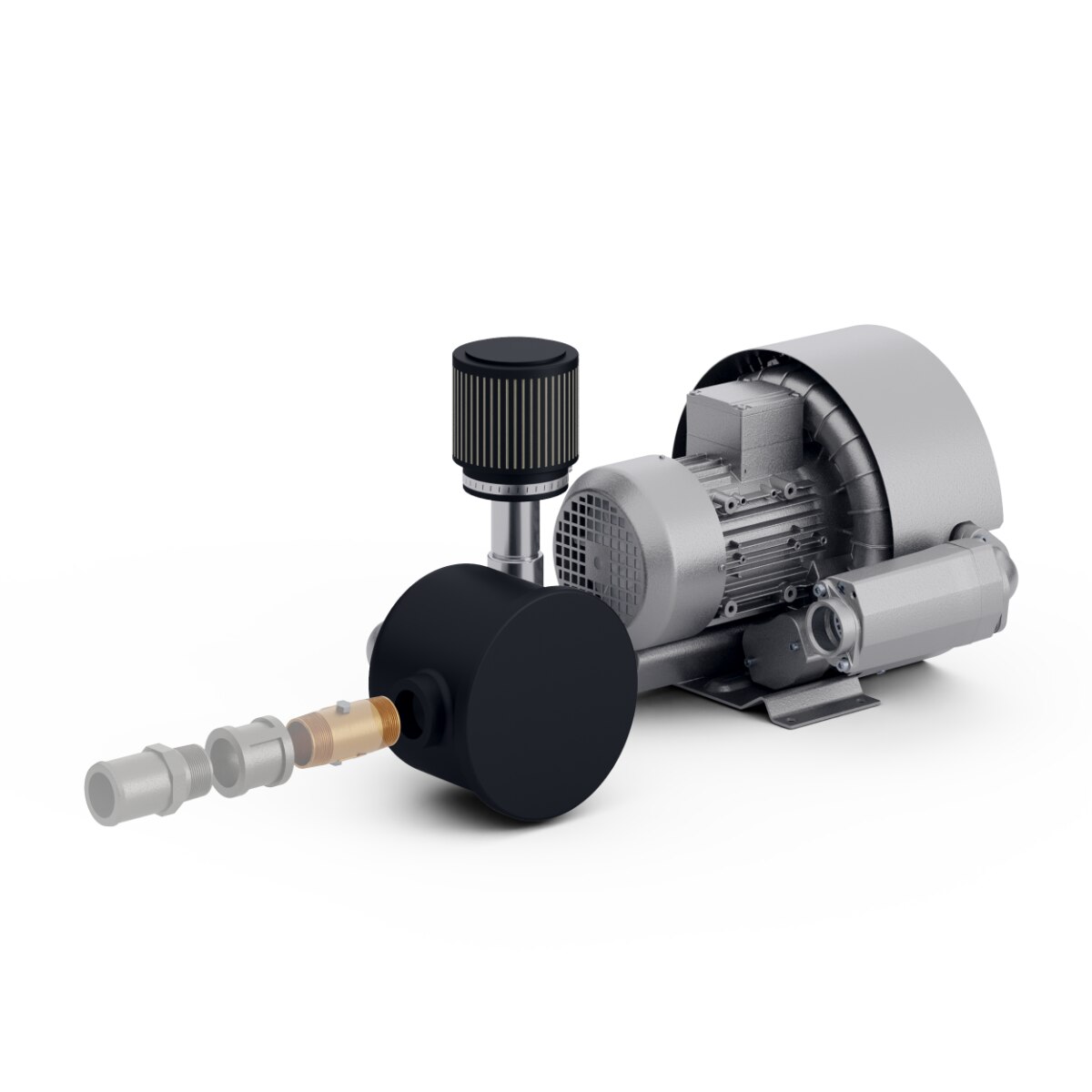

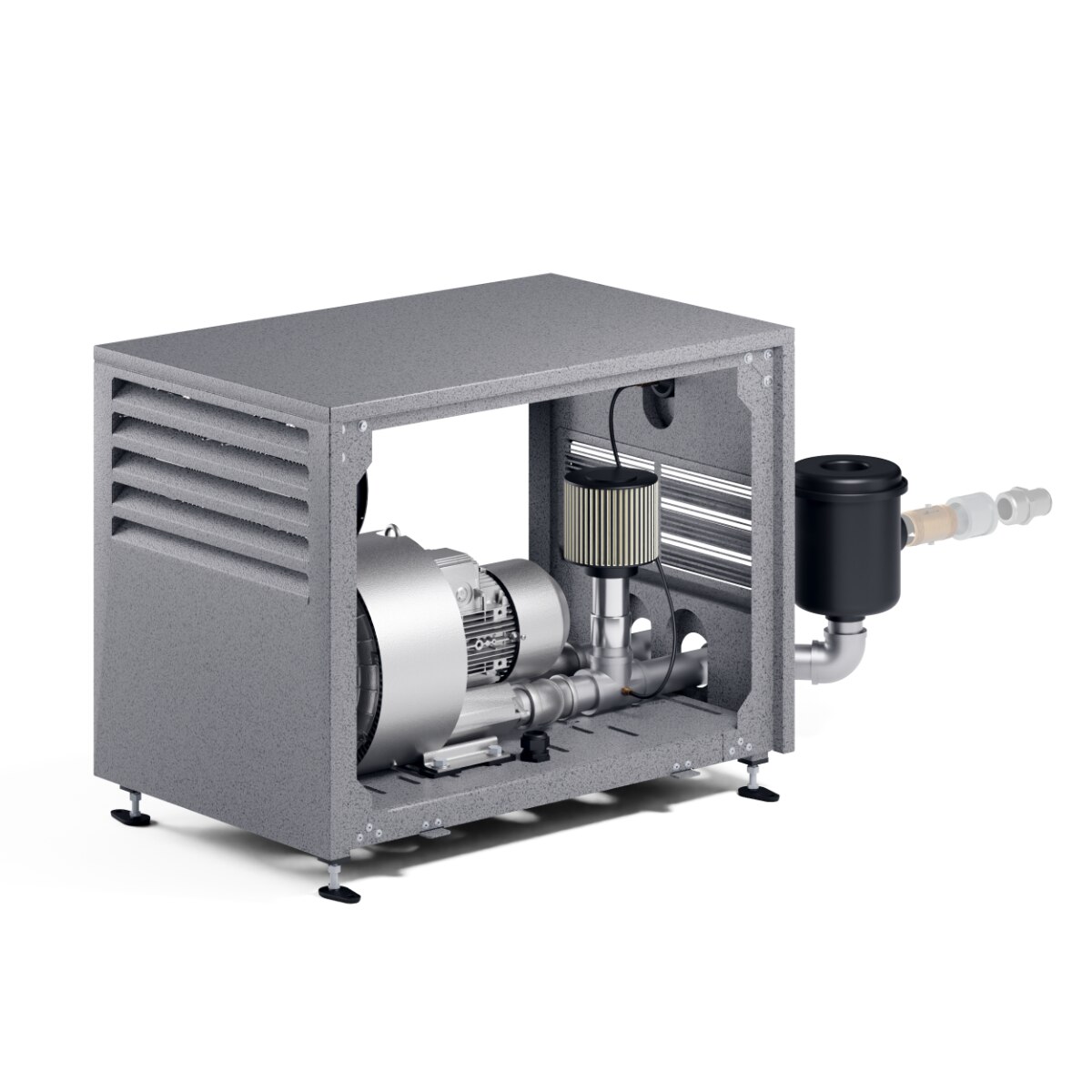

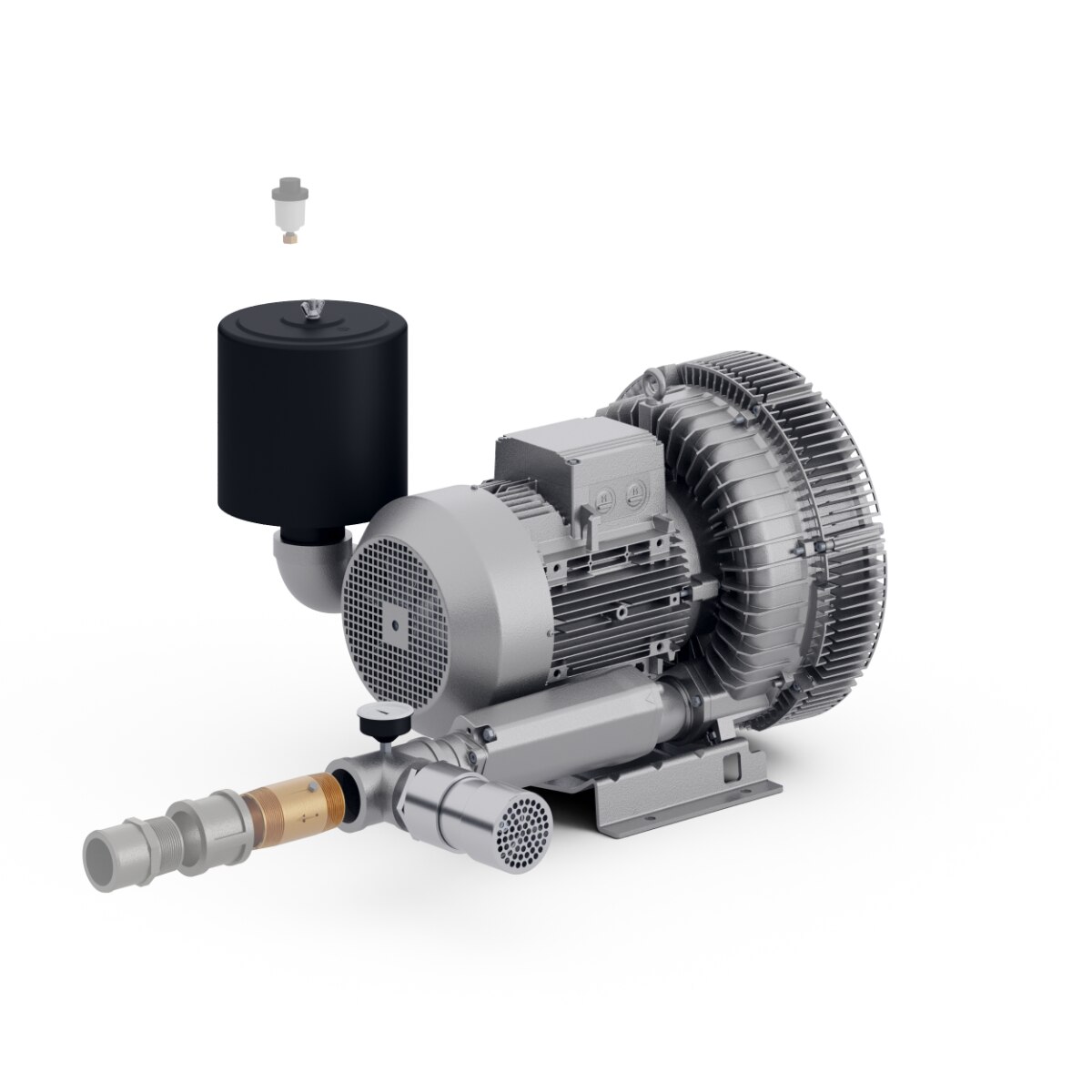

Republic HRC1102 two-stage side channel blower with IE3 premium efficiency 16.9 HP, 50/60 Hz, 3-phase, wide-range voltage, TEFC (IP54) motor. Standard features include heavy duty aluminum construction, cool-running outboard bearings for long life, integrated inlet and discharge silencers for quiet operation, 2-1/2" NPT inlet and discharge connections, and a cUL, UL, and CE listed motor with class F insulation. An inlet filter and relief valve are strongly recommended and sold separately. Fully assembled packages with inlet filter, relief valve, gauge, and even sound enclosures are also available.
Brand:
Republic
Flow Rate (CFM):
364
Max Pressure (In H2O):
241
Max Vacuum (in H2O):
185
Horsepower (60 Hz):
16.9
Voltage (60 Hz):
220-275/380-480
Horsepower (50 Hz):
14.8
Voltage (50Hz):
200-240/345-415
Phase:
3-phase
Noise Level (dBA):
78
Number of Stages:
2
Connection Size:
2-1/2
Connection Type:
NPT
