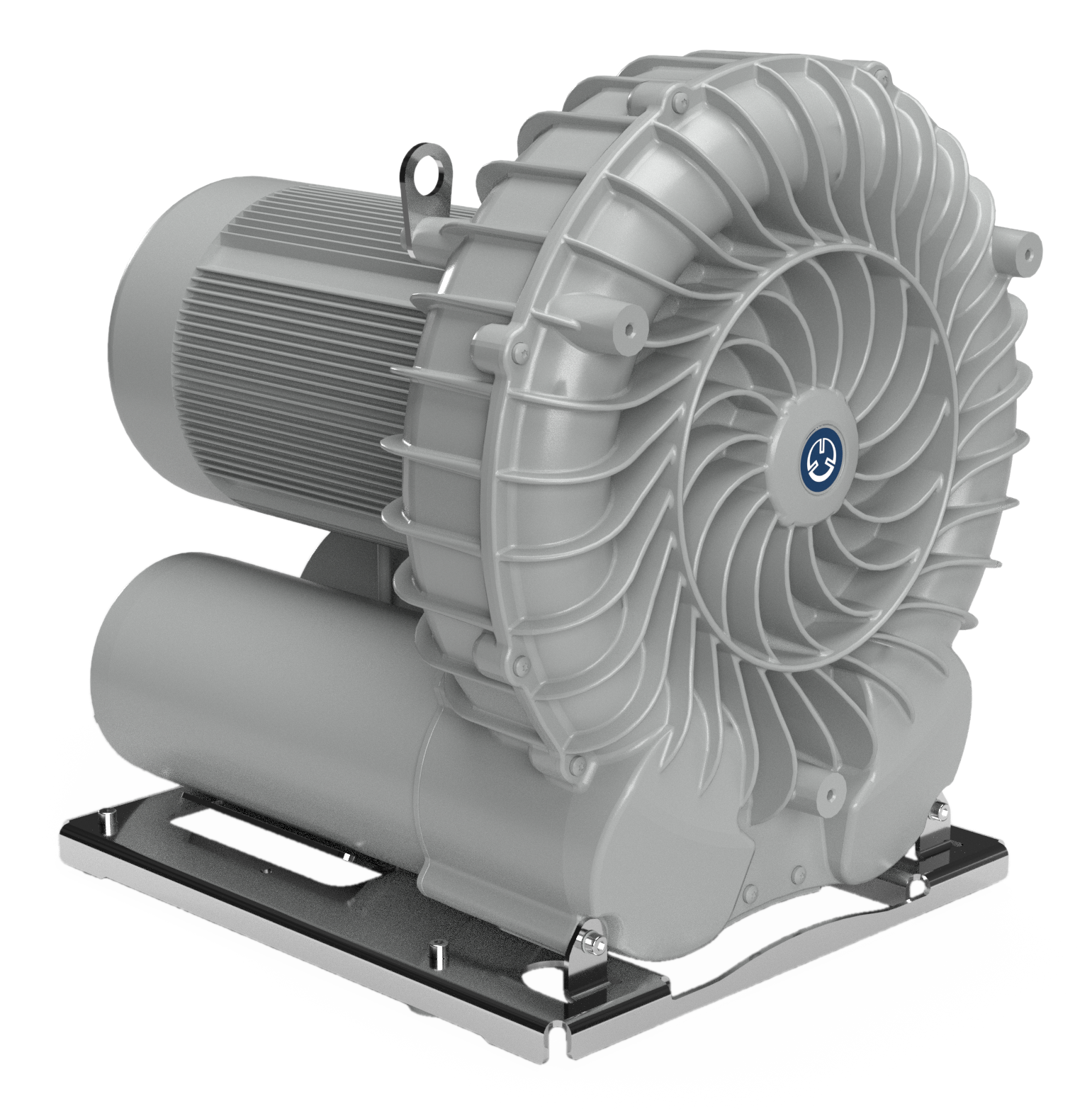

Becker SV700/2 (12.1 HP, 3-ph) Vacuum Package

Images may be representative.

$13,824.72
Becker two-stage regenerative blower vacuum package with 12.1 HP, 3-ph, 230/460v motor. Fully assmbled with inlet filter and vacuum relief valve. (This item currently has a 9.1% tariff surcharge which will be added to your order as a separate line item offline. Tariff surcharges are subject to change.)
Item: SV700/2 (12.1 HP, 3-ph) Vacuum Package
Back

Details

Becker two-stage side channel blower vacuum package with IE3 premium efficiency 12.1 HP, 230/460v, 60 Hz, 3-phase, TEFC (IP55) motor. Standard features include heavy duty construction, integrated inlet and discharge silencers for quiet operation, and a UL/CSA listed motor with class F insulation. This fully-assembled, high-quality blower package is complete with an inlet vacuum filter, relief valve with filter, and vacuum gauge.
Brand:
Becker

Flow Rate (CFM):
258

Max Vacuum (in H2O):
169

Horsepower (60 Hz):
12.1

Voltage (60 Hz):
230/460

Frequency (Hz):
60

Phase:
3-phase

Noise Level (dBA):
76

Number of Stages:
2

Net Weight (Lbs):
247


Downloads

These supporting documents are available for download:

Becker SV 700-2 Data Sheet

Becker SV 700-2 Operating Manual

Becker SV 700-2 Parts List
