Elmo Rietschle 2BH15001AQ33Z
Images may be representative.
Details

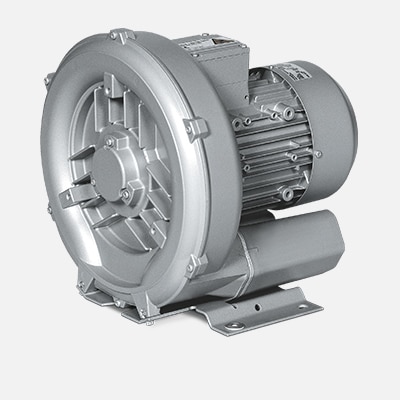

Elmo Rietschle single-stage side channel blower integrally flanged to an IE3 premium efficient 3.4 HP, 575 volt, 60 Hz, 3-phase TEFC (IP55) motor. Motor is dual rated for 50 Hz operation. Standard features include integrated silencers, and 2 inch NPT connections. Precision German Engineering ensures reliable, long-term operation. An inlet filter and relief valve are strongly recommended and sold separately.
Brand:
Elmo Rietschle
Flow Rate (CFM):
148
Max Pressure (PSIG):
4.6
Max Pressure (In H2O):
128
Max Vacuum (in HgV):
8.2
Max Vacuum (in H2O):
112
Horsepower (60 Hz):
3.4
Voltage (60 Hz):
575
Frequency (Hz):
50/60
Phase:
3-phase
Noise Level (dBA):
70
Number of Stages:
1
Connection Size:
2
Connection Type:
NPT (F)
