Elmo Rietschle 2BH19001AK16Z
Images may be representative.
Details

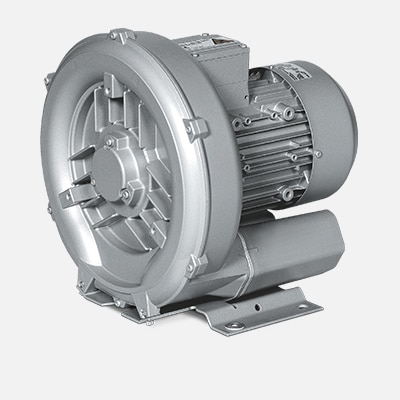

Elmo Rietschle single-stage side channel blower integrally flanged to an IE3 premium efficient 19.4 HP, 230/460 volt, 60 Hz, 3-phase TEFC (IP55) motor. Motor is dual rated for 50 Hz operation. Standard features include integrated silencers, and 4 inch NPT connections. Precision German Engineering ensures reliable, long-term operation. An inlet filter and relief valve are strongly recommended and sold separately.
Brand:
Elmo Rietschle
Flow Rate (CFM):
735
Max Pressure (PSIG):
3.7
Max Pressure (In H2O):
104
Max Vacuum (in HgV):
7.9
Max Vacuum (in H2O):
108
Horsepower (60 Hz):
19.4
Voltage (60 Hz):
230/460
Frequency (Hz):
50/60
Phase:
3-phase
Noise Level (dBA):
79
Number of Stages:
1
Connection Size:
4
Connection Type:
NPT (F)
Downloads
These supporting documents are available for download:
