Republic HRC102-575

Images may be representative.

Contact Us For Pricing Information
Two-stage regenerative blower (0.6 HP, 575 volt). Discontinued. (This item currently has a 10% tariff surcharge which will be added to your order as a separate line item offline. Tariff surcharges are subject to change.)
Item: HRC102-575
Back

Details

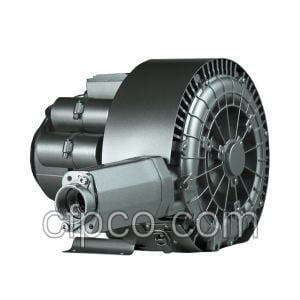

Republic HRC102-575 two-stage side channel blower with IE3 premium efficiency 0.6 HP, 575 volt, 60 Hz, 3-phase TEFC (IP54) motor. Standard features include heavy duty aluminum construction, cool-running outboard bearings for long life, integrated inlet and discharge silencers for quiet operation, 1-1/4" NPT inlet and discharge connections, and a cUL, UL, and CE listed motor with class F insulation. An inlet filter and relief valve are strongly recommended and sold separately. Fully assembled packages with inlet filter, relief valve, gauge, and even sound enclosures are also available.
Brand:
Republic

Flow Rate (CFM):
58

Max Pressure (In H2O):
59

Max Vacuum (in H2O):
39

Horsepower (60 Hz):
0.6

Voltage (60 Hz):
575

Frequency (Hz):
60

Phase:
3-phase

Noise Level (dBA):
68

Number of Stages:
2

Connection Size:
1-1/4

Connection Type:
NPT

Net Weight (Lbs):
33


Downloads

These supporting documents are available for download:

Republic HRC102 Datasheet
