VTE 6 (3-ph)

Images may be representative.

Back

Details

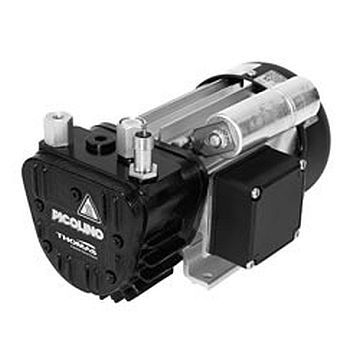

Thomas / Rietschle VTE6 oil-less rotary vane vacuum pump with 0.40 HP, 200-277/346-480v, 60 Hz, 3-phase TEFC motor. Pump includes carbon vanes and an integral 5 micron inlet filter. A vacuum relief valve is optional and sold separately. Factory part number 25160114.
Brand:
Thomas

Flow Rate (CFM):
4.2

Flow Rate (LPM):
119

Max Vacuum (in HgV):
25.4

Max Vacuum (Torr):
115

Horsepower (60 Hz):
0.4

Voltage (60 Hz):
200-277/346-480

Voltage (50Hz):
200-255/346-400

Frequency (Hz):
50/60

Phase:
3-phase

Item Length (In):
8.66

Item Width (In):
5.98

Item Height (In):
6.14

Net Weight (Lbs):
16.53


Description: Thomas Service Kit. Kit includes Vanes, Filter Cartridge, Gaskets, Washers. Kit is compatible with standard Thomas (PICOLINO) DTE / VTE 6 models (This item currently has a tariff surcharge which will be added to your order as a separate line item. Tariff surcharges are subject to change.)

Availability: Please contact us at +1 (847) 540-0054 or sales@cfpco.com for estimated lead time

Downloads

These supporting documents are available for download:
