Republic HRC720

Details

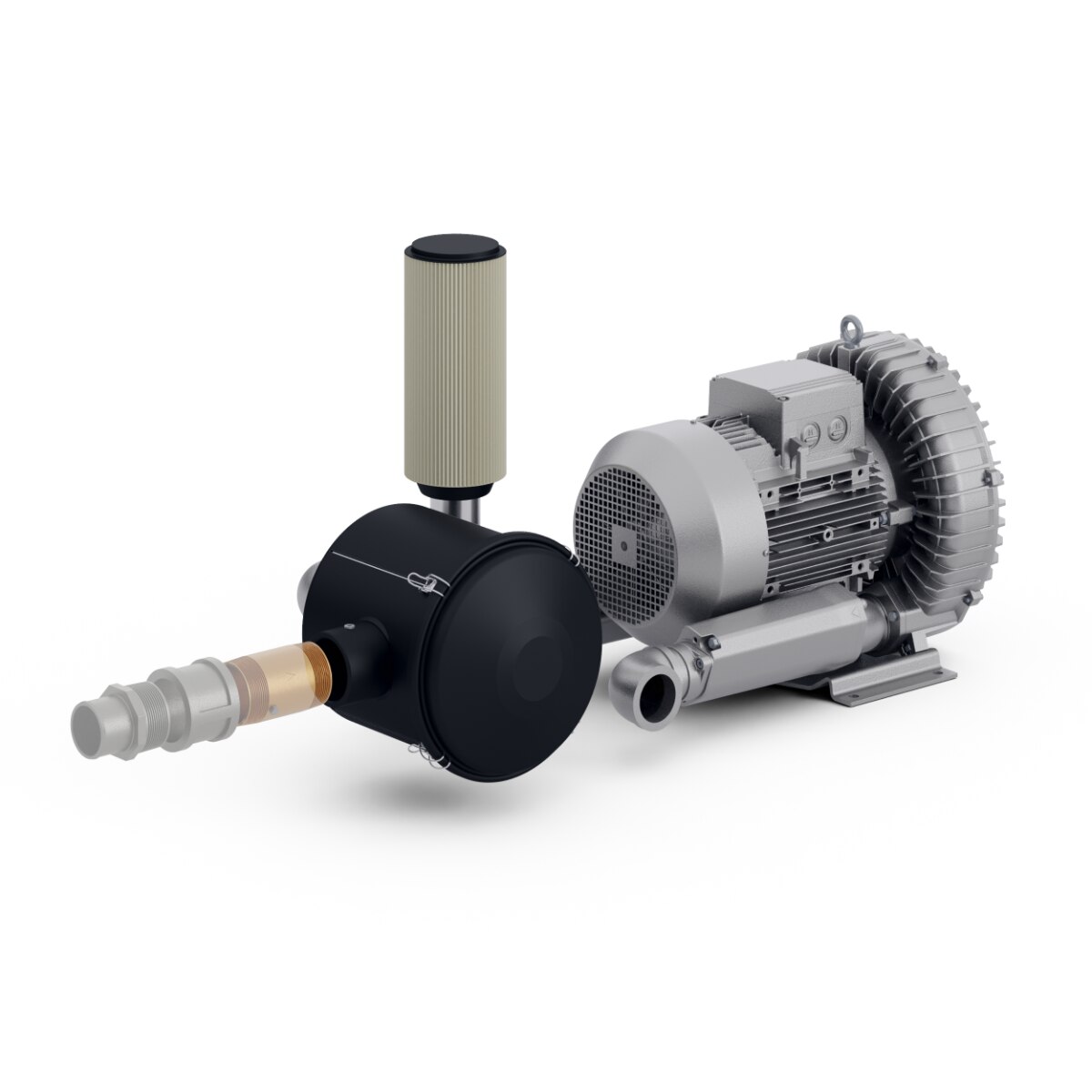

Republic HRC720 single-stage side channel blower with IE3 premium efficiency 4.6 HP, 50/60 Hz, 3-phase, wide-range voltage, TEFC (IP54) motor. Standard features include heavy duty aluminum construction, cool-running outboard bearings for long life, integrated inlet and discharge silencers for quiet operation, 2" NPT inlet and discharge connections, and a cUL, UL, and CE listed motor with class F insulation. An inlet filter and relief valve are strongly recommended and sold separately. Fully assembled packages with inlet filter, relief valve, gauge, and even sound enclosures are also available.
Brand:
Republic

Flow Rate (CFM):
294

Max Pressure (In H2O):
68

Max Vacuum (in H2O):
80

Horsepower (60 Hz):
4.6

Voltage (60 Hz):
220-275/380-480

Horsepower (50 Hz):
4

Voltage (50Hz):
200-240/345-415

Phase:
3-phase

Noise Level (dBA):
73

Number of Stages:
1

Connection Size:
2

Connection Type:
NPT


Downloads

These supporting documents are available for download:
